Diaphragm Drum Pumps
Yamada® Air-Powered Double Diaphragm Drum Pumps
NDP-20 Aluminum Drum Pump
NDP-20 Polypropylene Drum Pump Side Mounted
G15 Aluminum Drum Pump
G15 Polypropylene Drum Pump
G15 Stainless Steel Drum Pump
NDP-15 Polypropylene Drum Pump
NDP-15 Stainless Steel Drum Pump
Yamada® drum pumps are known for their durability, reliability, and ease of use. They are made from high-quality materials such as stainless steel and polypropylene, which make them resistant to corrosion and chemical damage. These pumps are available in various sizes and configurations to meet the specific needs of different industries and applications.
One of the unique features of Yamada drum pumps is their air-operated design. These pumps use compressed air to transfer fluids, which makes them ideal for use in hazardous or explosive environments. They are also designed to be self-priming, which means they can draw fluid from a container without the need for additional priming or suction.
Yamada drum pumps can handle a wide range of fluids, including chemicals, solvents, oils, and viscous liquids. They are commonly used in industries such as chemical processing, food and beverage production, and pharmaceutical manufacturing. These pumps are also popular in laboratories, where they are used for transferring and dispensing small quantities of fluids.
Overall, Yamada drum pumps are a reliable and efficient solution for fluid transfer needs. Their high-quality construction, air-operated design, and versatility make them a popular choice for a wide range of industries and applications.
UNPACK & INSTALL
Fully assembled unit includes pump, dip tube and necessary accessories.
Models are available in Polypropylene, PVDF (Kynar®), Aluminum, and Stainless Steel which includes a 2" bung adapter and 33" suction tube.
- 25 GPM Maximum Flow Rate
- Available in 3/8", 1/2", and 3/4" port sizes
(3/8" metal only) - 100 PSI Maximum Air Supply Pressure
- Note: Yamada plastic drum pumps incorporate side liquid ports and utilize a 90° elbow on the top of the drum.
- Refer to DP-10, NDP-15, G15 & NDP-20 pump series technical information for additional performance data.
- Add "-D" nomenclature to the end of the pump model number and/or description. (e.g. 851515-D or NDP-20BAN-D)
- For additional pump options, see the Extended Pump Model Nomenclature chart under the Model Nomenclature tab.
- Other sizes and materials are also available, consult Yamada.
PORT DIMENSIONS
Intake & Discharge Connection
| Aluminum (ADC-12) | 3/8" Female NPT (DP-10) 1/2" Female NPT (G15) 3/4" Female NPT (NDP-20) Includes Aluminum Male NPT bung adapter and suction pipe |
| Stainless Steel (316) | 3/8" Female NPT (DP-10) 1/2" Female NPT (NDP-15 & G15) 3/4" Female NPT (NDP-20) Includes Stainless Steel Male NPT bung adapter and suction pipe |
|
Polypropylene (PPG) Pure Polypropylene (PP) |
1/2" Female NPT (NDP-15 & G15) 3/4" Female NPT (NDP-20) Includes PVC suction pipe, elbow (3/4" only) and bung adapter Note: Yamada recommends utilizing flat type check valves for the NDP-15 series polypropylene pumps. |
| Kynar (PVDF) |
1/2" Female NPT (NDP-15) |
| Drum inlet connection | 2" bung adapter |
| Drum Pump Nomenclature | Add "-D" at the end of the pump model number and/or description. (e.g. 851515-D or NDP-20BAN-D) |
Note: Yamada recommends utilizing flat type check valves for the NDP-15 series Polypropylene and Kynar pumps.
DRUM PUMP MODELS
| Model # | Description |

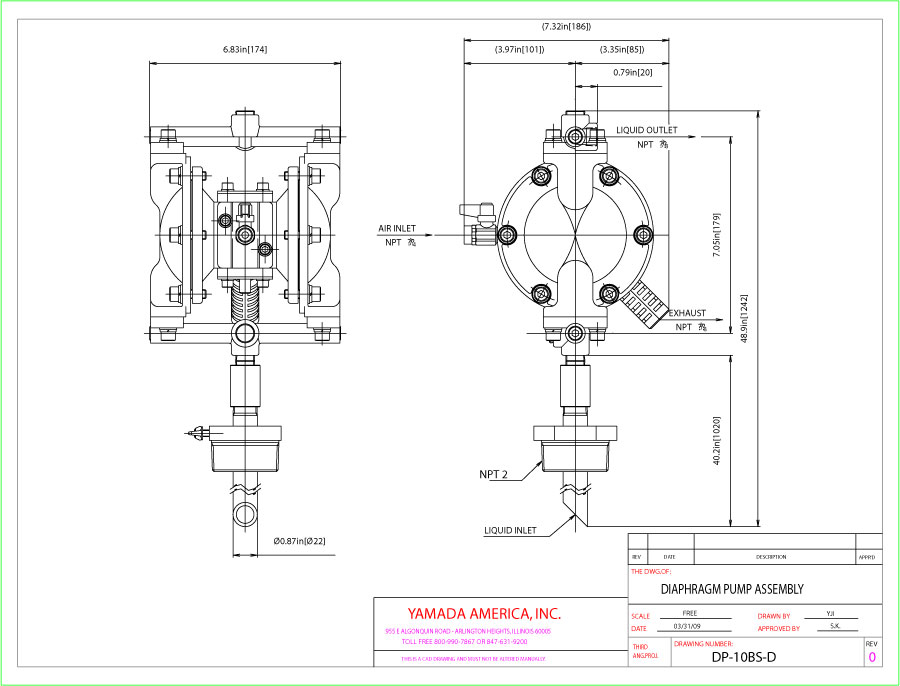

| DP-10BAC-D | DP-10BAC DRUM |
| DP-10BAH-D | DP-10BAH DRUM |
| DP-10BAN-D | DP-10BAN DRUM |
| DP-10BAS-D | DP-10BAS DRUM |
| DP-10BAT-D | DP-10BAT DRUM |
| DP-10BSC-D | DP-10BSC DRUM |
| DP-10BSH-D | DP-10BSH DRUM |
| DP-10BSN-D | DP-10BSN DRUM |
| DP-10BSS-D | DP-10BSS DRUM |
| DP-10BST-D | DP-10BST DRUM |
| NDP-15BSC-D | NDP-15BSC DRUM |
| NDP-15BSH-D | NDP-15BSH DRUM |
| NDP-15BSN-D | NDP-15BSN DRUM |
| NDP-15BSS-D | NDP-15BSS DRUM |
| NDP-15BST-D | NDP-15BST DRUM |
| NDP-15BPN-D | NDP-15BPN DRUM |
| NDP-15BPS-D | NDP-15BPS DRUM |
| NDP-15BPT-D | NDP-15BPT DRUM |
| NDP-15FPH-D | NDP-15FPH DRUM |
| NDP-15FPN-D | NDP-15FPN DRUM |
| NDP-15FPS-D | NDP-15FPS DRUM |
| NDP-15FPT-D | NDP-15FPT DRUM |
| NDP-15FVH-D | NDP-15FVH DRUM |
| NDP-15FVS-D | NDP-15FVS DRUM |
| NDP-15FVT-D | NDP-15FVT DRUM |
| G15AN-D | G15AN DRUM |
| G15AS-D | G15AS DRUM |
| G15AT-D | G15AT DRUM |
| G15SN11-D | G15SN11 DRUM |
| G15SS11-D | G15SS11 DRUM |
| G15ST11-D | G15ST11 DRUM |
| G15PN11-D | G15PN11 DRUM |
| G15PS11-D | G15PS11 DRUM |
| G15PT11-D | G15PT11 DRUM |
| G15VT11-D | G15VT11 DRUM |
| NDP-20BAC-D | NDP-20BAC DRUM |
| NDP-20BAE-D | NDP-20BAE DRUM |
| NDP-20BAH-D | NDP-20BAH DRUM |
| NDP-20BAN-D | NDP-20BAN DRUM |
| NDP-20BAS-D | NDP-20BAS DRUM |
| NDP-20BAV-D | NDP-20BAV DRUM |
| NDP-20BAT-D | NDP-20BAT DRUM |
| NDP-20BAN-PP-D | NDP-20BAN-PP DRUM |
| NDP-20BAT-PP-D | NDP-20BAT-PP DRUM |
| NDP-20BSC-D | NDP-20BSC DRUM |
| NDP-20BSE-D | NDP-20BSE DRUM |
| NDP-20BSH-D | NDP-20BSH DRUM |
| NDP-20BSN-D | NDP-20BSN DRUM |
| NDP-20BSS-D | NDP-20BSS DRUM |
| NDP-20BSV-D | NDP-20BSV DRUM |
| NDP-20BST-D | NDP-20BST DRUM |
| NDP-20BST-PP-D | NDP-20BST-PP DRUM |
| NDP-20BPC-D | NDP-20BPC DRUM |
| NDP-20BPE-D | NDP-20BPE DRUM |
| NDP-20BPH-D | NDP-20BPH DRUM |
| NDP-20BPN-D | NDP-20BPN DRUM |
| NDP-20BPS-D | NDP-20BPS DRUM |
| NDP-20BPV-D | NDP-20BPV DRUM |
| NDP-20BPT-D | NDP-20BPT DRUM |
| NDP-20BPC-PP-D | NDP-20BPC-PP DRUM |
| NDP-20BPE-PP-D | NDP-20BPE-PP DRUM |
| NDP-20BPN-PP-D | NDP-20BPN-PP DRUM |
| NDP-20BPS-PP-D | NDP-20BPS-PP DRUM |
| NDP-20BPV-PP-D | NDP-20BPV-PP DRUM |
| NDP-20BPT-PP-D | NDP-20BPT-PP DRUM |
| Model # | Description (FDA Drum Pumps) |
| DP-10BSH-FDA-D | DP-10BSH FDA DRUM |
| DP-10BST-FDA-D | DP-10BST FDA DRUM |
| NDP-20BSE-FDA-D | NDP-20BSE FDA DRUM |
| NDP-20BSH-FDA-D | NDP-20BSH FDA DRUM |
| NDP-20BST-FDA-D | NDP-20BST FDA DRUM |
