DP-10/DP-15/G15 Series

Yamada® DP-10/DP-15/G15 Diaphragm Pump Series

DP-10 ALUMINUM
DP-10 ALUMINUM
Dimensions: 7.32" W × 9.49" H
Net Weight: 7.7 lbs. (3.5 kg)
Shipping Weight: 9.7 lbs.
DP-10 STAINLESS STEEL
DP-10 STAINLESS STEEL
Dimensions: 7.13" W × 9.37" H
Net Weight: 11.5 lbs. (5.2 kg)
Shipping Weight: 13.5 lbs.
DP-10 POLYPROPYLENE
DP-10 POLYPROPYLENE
Dimensions: 7.68" W x 7.72" H
Net Weight: 6.6 lbs. (3.0 kg)
Shipping Weight: 8.6 lbs.

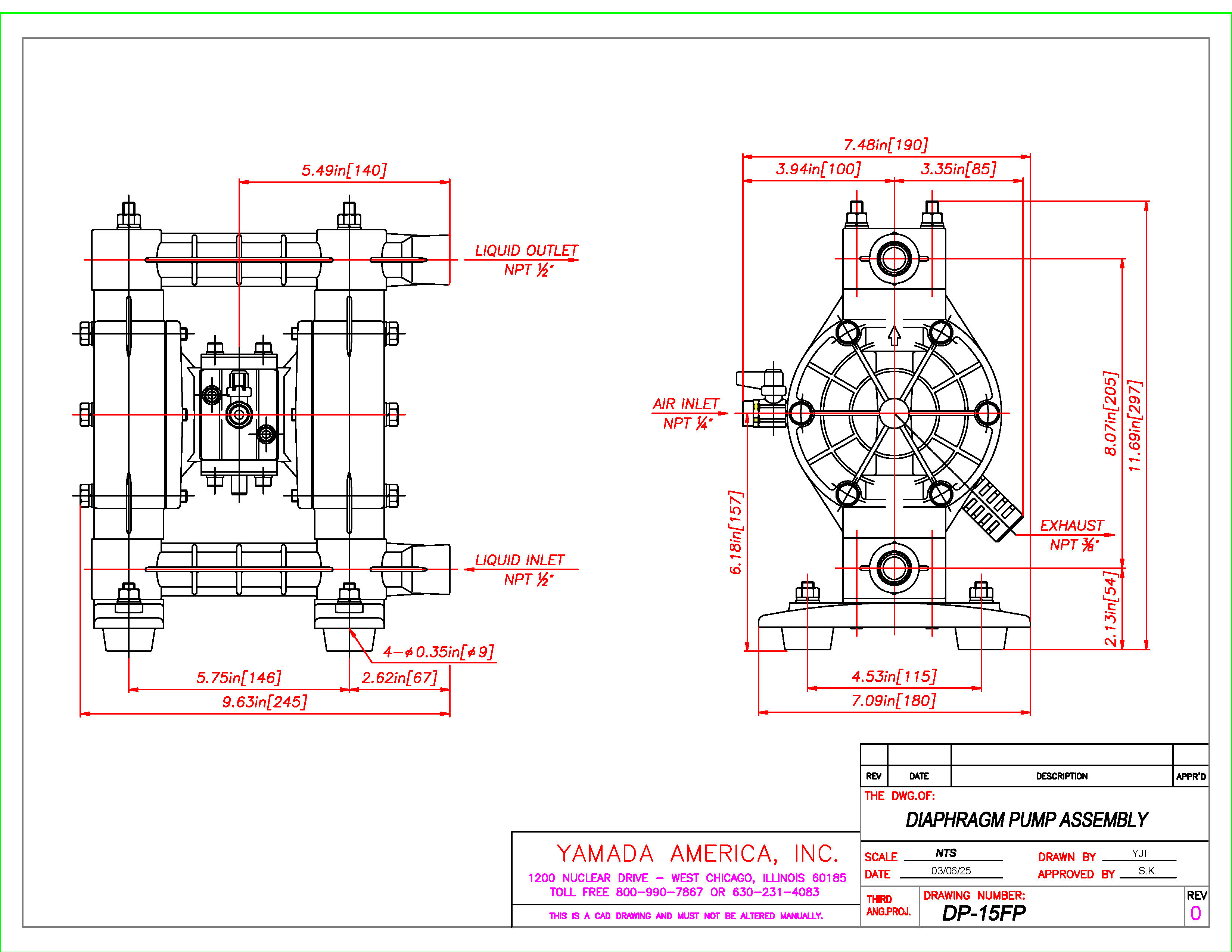

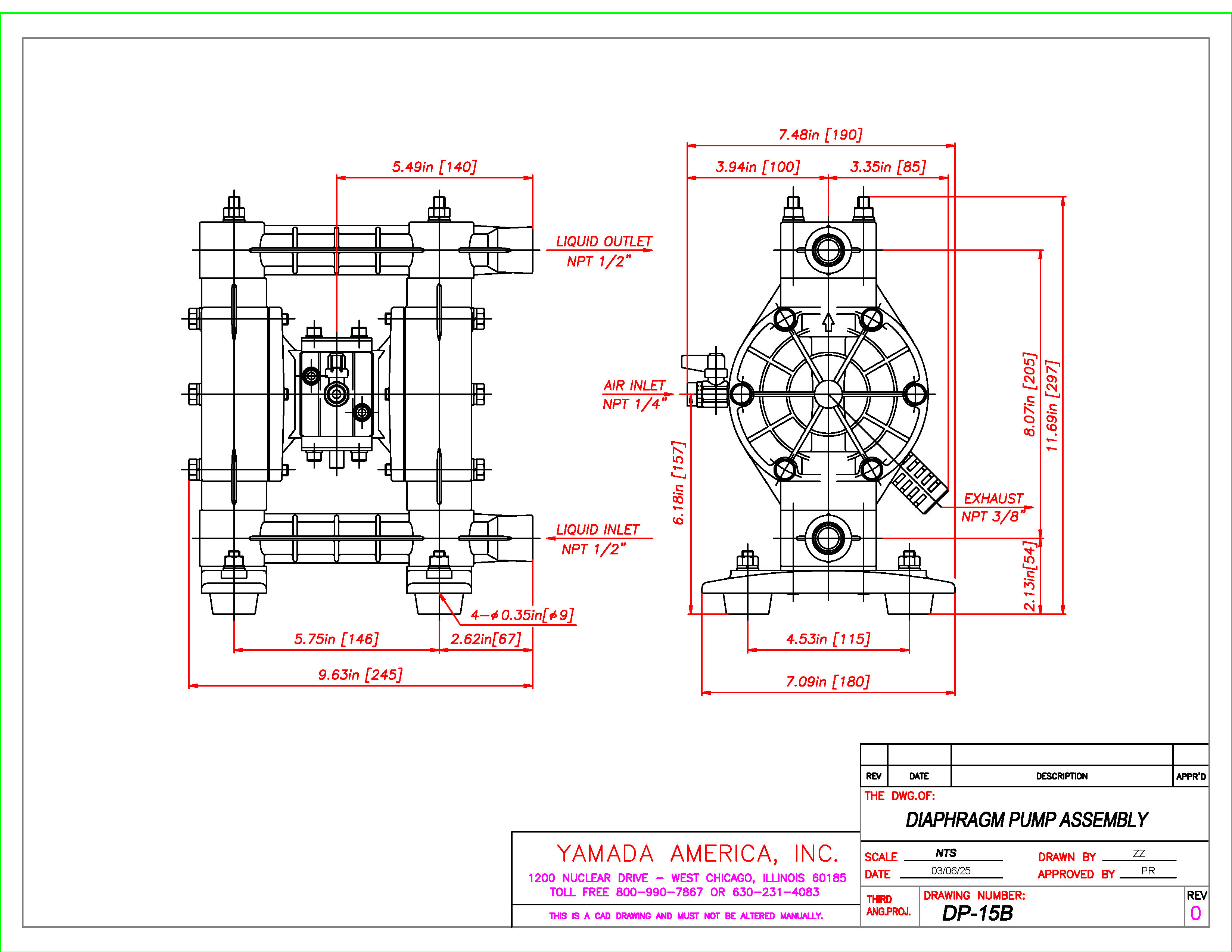

DP-15 POLYPROPYLENE
DP-15 POLYPROPYLENE
Dimensions: 9.69" W x 11.69" H
Net Weight: 7.7 lbs. (3.5 kg)
Shipping Weight: 9.7 lbs.
DP-15 GROUNDABLE ACETAL
DP-15 GROUNDABLE ACETAL
Dimensions: 9.69" W x 11.69" H
Net Weight: 7.7 lbs. (3.5 kg)
Shipping Weight: 9.7 lbs.

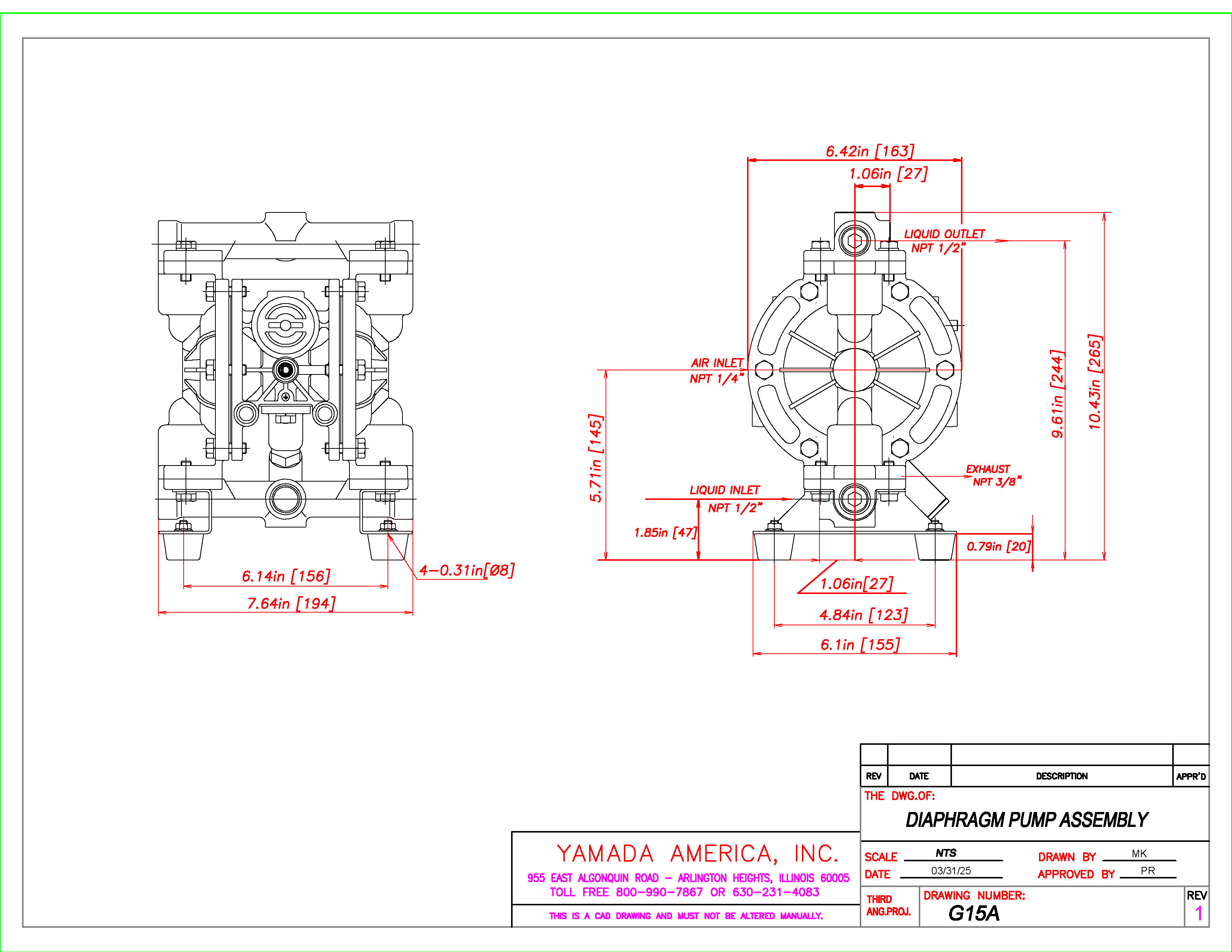

G15 ALUMINUM
G15 ALUMINUM
Dimensions: 7.64" W x 10.43" H
Net Weight: 11.9 lbs. (5.4 kg)
Shipping Weight: 14.4 lbs.

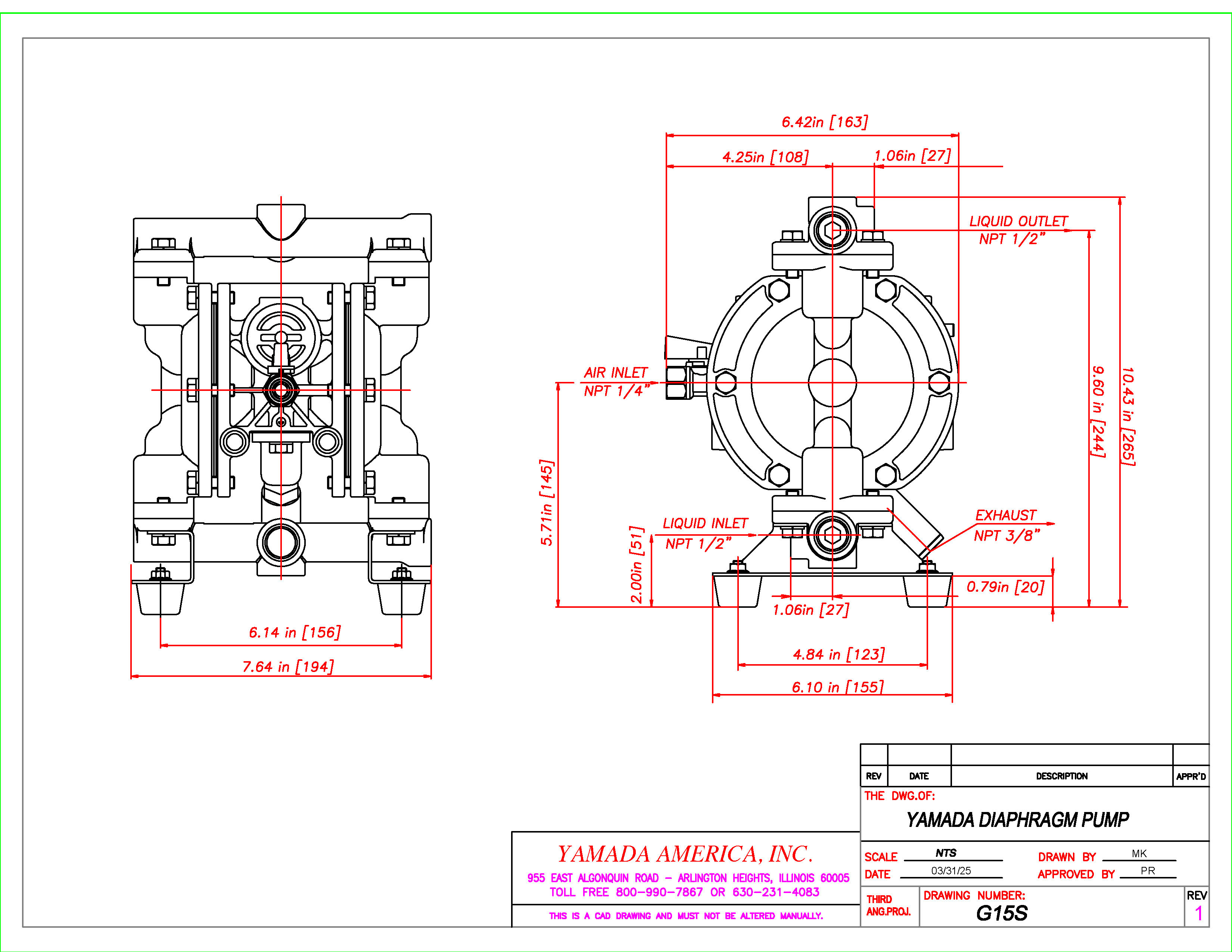

G15 STAINLESS STEEL
G15 STAINLESS STEEL
Dimensions: 7.64" W x 10.43" H Net Weight: 18.1 lbs. (8.2 kg) Shipping Weight: 22 lbs.

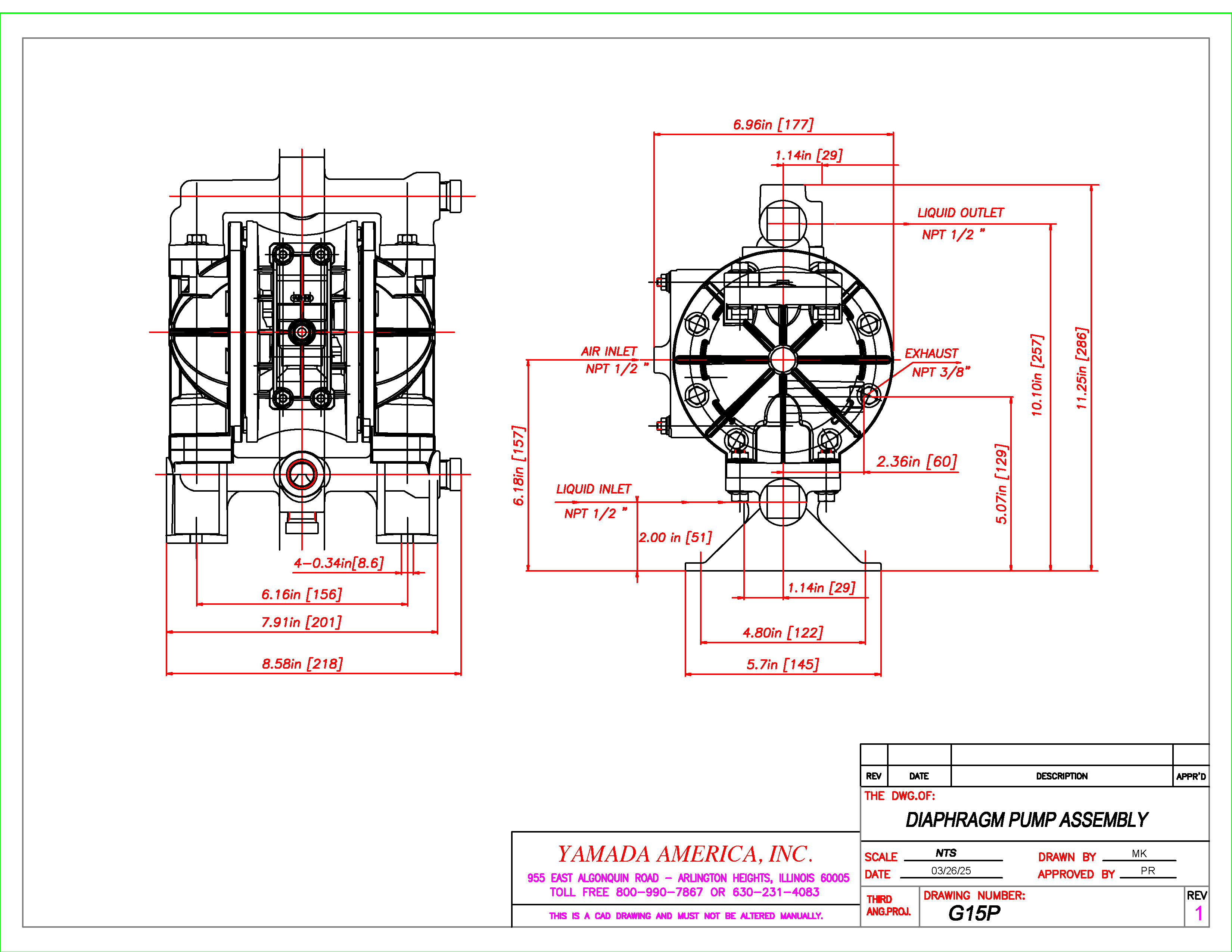

G15 PURE POLYPROPYLENE
G15 PURE POLYPROPYLENE
Dimensions: 8.58" W x 11.25" W Net Weight: 5.74 lbs. (2.6 kg) Shipping Weight: 9 lbs.

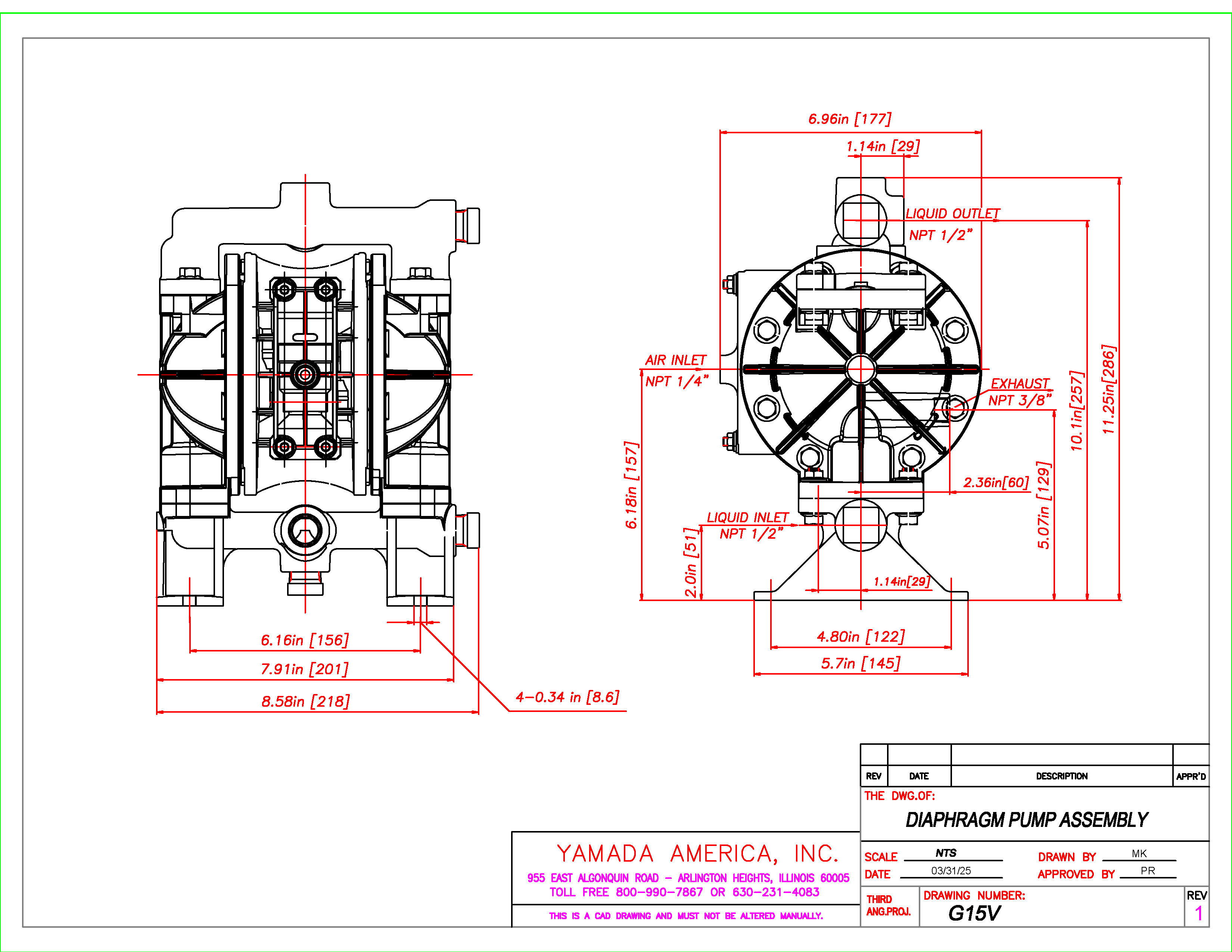

G15 KYNAR
G15 KYNAR
Dimensions: 8.58" W x 11.25" H
Net Weight: 7.72 lbs. (3.5 kg)
Shipping Weight: 12 lbs.

Yamada Trial Pump Program

3/8" & 1/2" Fluid Ports

DP-10 series 3/8" AODD pumps provide a maximum flow rate of 6 GPM and are available in Aluminum, Stainless Steel (316) and Polypropylene.

DP-15 series 1/2" AODD pumps provide a maximum flow rate of 7.4 GPM and are available in Polypropylene and Groundable Acetal.

G15 Global Series 1/2" AODD pumps provide a maximum flow rate of 16.6 GPM and are available in Aluminum, Stainless Steel (316), Pure Polypropylene and Kymar.

We offer a wide selection of diaphragm materials that cover a variety of applications.

The NDP series pumps utilize a C-Spool.

What separates Yamada from the rest of the pack is our air valve technology. Yamada NDP series pumps use a completely non-lubricated main air valve and independent pilot mechanisms to control the air logic.

As compressed air enters the pump, it is directed via the main air valve to one side or the other, depending upon the starting position of the c-spool.  As the air enters the chamber, it forces the diaphragm outward. This outward momentum forces liquid out of the discharge ball valve and loads the opposite inlet ball valve. As the diaphragm travels outward, the connected diaphragm on the opposite side is pulling the diaphragm inward.

When it travels a full stroke, it will contact the pilot valve, depressing it and breaking the seal to open an exhaust port.

The open port allows the compressed air to the exhaust from the back side of the air valve. The pressure drop produces a shift of the main air valve. This motion simply repeats on the other side.

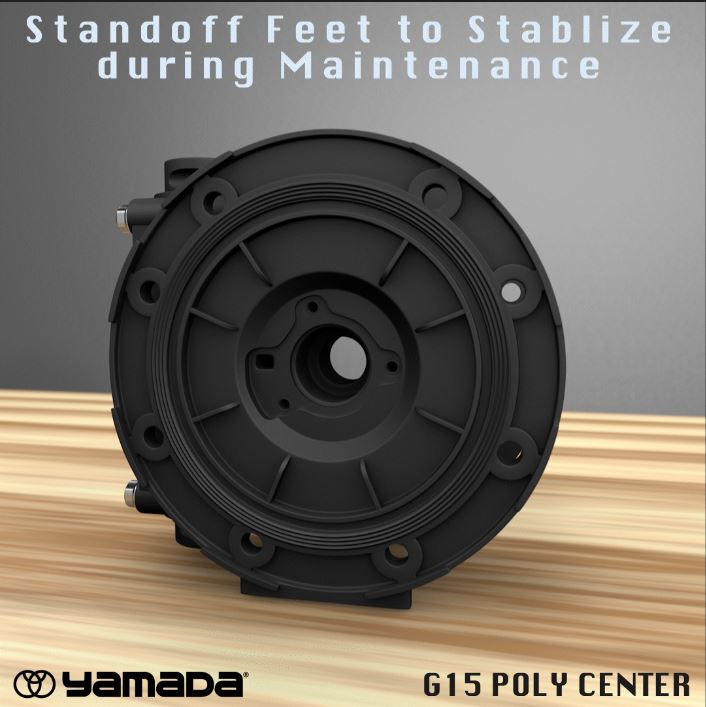

The Global Series pumps utilize a Step Spool (S-Spool).

Yamada Global Series pumps do not have an independent pilot valve system (less parts) and consume less air versus the competition. Available with multiport options, these AODD pumps perform extremely well in continous stop/start operations and provide exceptional suction lift.



Options > Ultimate Diaphragms



GENERAL PUMP INFORMATION

DP-10 SPECIFICATIONS

Fluid Port 3/8" NPT
GPM 6
Discharge Volume Per Cycle 0.020 Gallons
Air Motor Aluminum
Intake & Discharge Connections
Polypropylene (PPG) 3/8" Female NPT
Aluminum (ADC-12) 3/8" Female NPT
Stainless Steel (316) 3/8" Female NPT
Air Inlet 1/4" Female NPT (includes ball valve)
Air Exhaust 3/8" Female NPT (includes silencer)


DP-15 SPECIFICATIONS

Fluid Port 1/2" NPT
GPM 7.4
Discharge Volume Per Cycle 0.027 Gallons
Air Motor Aluminum
Intake & Discharge Connections
Polypropylene (PPG) 1/2" Female NPT
Aluminum (ADC-12) 1/2" Female NPT
Groundable Acetal 1/2" Female NPT
Air Inlet 1/4" Female NPT (includes ball valve)
Air Exhaust 3/8” Female NPT (includes silencer)


G15 SPECIFICATIONS

Fluid Port 1/2" Female NPT
GPM 16.6
Discharge Volume Per Cycle 0.039-0.050 Gallons
Air Motor Polypropylene (G15 plastic), Aluminum (G15 metal)
Intake & Discharge Connections
Pure Polypropylene (PP) 1/2" Female NPT
Kynar® 1/2" Female NPT
Aluminum (ADC-12) 1/2" Female NPT
Stainless Steel (316) 1/2" Female NPT
Air Inlet 1/4" Female NPT
Air Exhaust 3/8” Female NPT

Diaphragm Maximum Liquid Temperature*
Buna N 180°F (82°C)
Neoprene 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPEE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)
Ultimate 212°F (100°C)
*The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Additional Specifications
Air Supply Pressure 20-100 PSI
Max. Cycles Per Minute 379 (pumps vary)
Max. Size Solid 1/32" (1mm)
Max. Dry Suction Lift 13.5' (pumps vary)



DP-10 / DP-15 / G15 PUMP MODELS

Model # Description
851842 DP-10BAC
851847 DP-10BAH
851841 DP-10BAN
852677 DP-10BAS
851839 DP-10BAT
851839-U DP-10BAU
851845 DP-10BSC
851848 DP-10BSH
851846 DP-10BSN
852678 DP-10BSS
851840 DP-10BST
851840-U DP-10BSU
851844 DP-10BPC
851849 DP-10BPH
852388 DP-10BPN
852679 DP-10BPS
851843 DP-10BPT
851843-U DP-10BPU



Model # Description
853722 DP-15BPH
853718 DP-15BPN
853724 DP-15BPS
853720 DP-15BPT
853721 DP-15FPH
853717 DP-15FPN
853723 DP-15FPS
853719 DP-15FPT



Model # Description
854702 G15AH11
885470 G15AN11
854703 G15AS11
854701 G15AT11
854736 G15SH11
854734 G15SN11
854737 G15SS11
854735 G15ST11
854979 G15PH11
854981 G15PN11
854917 G15PS11
854916 G15PT11
854987 G15VH11
854986 G15VS11
854985 G15VT11

MATERIAL TYPES

:: Aluminum (DP-10)
Dimensions: 7.32" W × 9.49" H
Net Weight: 7.7 lbs. (3.5 kg)
Shipping Weight: 9.7 lbs.
:: Polypropylene (DP-10)
Dimensions: 7.68" W x 7.72" H
Net Weight: 6.6 lbs. (3.0 kg)
Shipping Weight: 8.6 lbs.
:: Polypropylene (DP-15)
Dimensions: 9.69" W x 11.69" H
Net Weight: 7.7 lbs. (3.5 kg)
Shipping Weight: 9.7 lbs.
:: Stainless Steel (DP-10)
Dimensions: 7.13" W × 9.37" H
Net Weight: 11.5 lbs. (5.2 kg)
Shipping Weight: 13.5 lbs.
:: Groundable Acetal (DP-15)
Dimensions: 9.69" W x 11.69" H
Net Weight: 7.7 lbs. (3.5 kg)
Shipping Weight: 9.7 lbs.
:: Aluminum (G15)
Dimensions: 7.64" W x 10.43" H
Net Weight: 11.9 lbs. (5.4 kg)
Shipping Weight: 15 lbs.
:: Stainless Steel (G15)
Dimensions: 7.64" W x 10.43" H
Net Weight: 18.1 lbs. (8.2 kg)
Shipping Weight: 22 lbs.
:: Pure Polypropylene (G15)
Dimensions: 8.58" W x 11.25" H
Net Weight: 5.74 lbs. (2.6 kg)
Shipping Weight: 9 lbs.
:: Kynar (G15)
Dimensions: 8.58" W x 11.25" H
Net Weight: 7.72 lbs. (3.5 kg)
Shipping Weight: 12 lbs.

ACCESSORIES

Air Motor Kit

K115-AM (All DP-10/15)

KG15-AM-P (G15 Plastic) & KG15AM-M (G15 Metal)
Liquid End Kits
  DP-10 Aluminum: K10-AC, K10-AN, K10-AH, K10-AS, K10-AT, 10-AU
  DP-10 Stainless Steel: K10-SC, K10-SN, K10-SH, K10-SS, K10-ST, K10-SU
  DP-10 Polypropylene: K10-PC, K10-PN, K10-PH, K10-PS, K10-PT, K10-PU
  DP-15 Polypropylene-Ball Valve: K15-PH-B, K15-PN-B, K15-PS-B, K15-PT-B
  DP-15 Polypropylene-Flat Valve: K15-PH, K15-PN, K15-PS, K15-PT
  G15 Aluminum: KG15-MH, KG15-MN, KG15-MS, KG15-MT
  G15 Stainless Steel: KG15-MH, KG15-MN, KG15-MS, KG15-MT
  G15 Pure Polypropylene: KG15-PH, KG15-PN, KG15-PS, KG15-PT
  G15 Kynar: KG15-VH, KG15-VS, KG15-VT
Filter / Regulators

FR-1, FR-1A (Auto Drain)

FRL-2, and FRL-2A (L = Lubricator)
Dampener

AD-10 Series
Liquid Level Controller

YALC, LLC-2Y,and LLC-3
Controllers

YSC-3B
Diaphragm Monitor System

DM-2
Dry Run Detector

DRD-100

The Yamada Advantage

Yamada Air Powered Double Diaphragm Pumps: Engineered for High Performance. Manufactured for Long Life.

Rugged, Bolted Construction

All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Bolted construction is superior to clamp band retainers, which frequently require frustrating, unnecessary leakage rebuilds from misalignment during reassembly.

Outside-Accessible Air Valve

Inspection or maintenance of every Yamada air valve may be performed without removing the pump from service. Outside accessible, making it easy to fix / inspect.

Unified Air Valve Concept

Common-size air valve assemblies reduce parts confusion and inventory.

Pilot Valve

Unique to the Yamada design is an individual modular pilot valve that actuates the air valve. It is depressed slightly by the inner center disk creating a pressure drop at one end of the air valve, allowing shifting to occur. It is maintenance free with no cumbersome snap rings or lubricated dynamic o-rings to replace or repair.

Patented Air Valve Technology

Incorporated in every Yamada Air Powered Double Diaphragm pump

Yamada air valve technology is the heart of the air-powered double diaphragm pump and determines reliability. Yamada holds three patents on its field proven valve and enjoys a superior reputation throughout the industry.

Why Specify an AODD Pump?

  • Handles a wide variety of fluids with high solids content
  • Self Priming
  • Ability to Run Dry
  • Variable flow rate and discharge pressure
  • Portable
  • Simple Installation
  • Dead Head
  • Shear Sensitive
  • Safe Operation
  • Submersible
  • Pumping efficiency remains constant
  • Cannot Overheat
  • High Pressure capabilities
  • No mechanical seals, couplings or motors
  • No pressure relief or bypass needed
