AD-10, 25, 40, 50 Dampeners Series
Diaphragm Pump Pulsation Dampeners
Yamada® AD-10 Series
Fits models NDP-5, NDP-15;DP-10, DP-15
Yamada® AD-25 Series
Fits models NDP-20, NDP-25,and NDP-32
Yamada® AD-40 Series
Fits model NDP-40 and XDP-40
Yamada® AD-50 Series
Fits models NDP-50, NDP-80, XDP-50, and XDP-80Yamada® AD Series Pulsation Dampenersgreatly reduce pressure fluctuations in fluid flow when mounted as close to the pump as possible. Yamada® AD dampeners incorporate a completely automatic self-relieving air motor if an increase or decrease in discharge head occurs.
Pulsation measurement without AD dampener.
For fluids with high solids content, Yamada®AD dampeners incorporate a flow-through design which keeps solids in suspension, maintaining dampener effectiveness. Yamada® AD dampeners do not restrict fluid flow, or increase fluid pressure, but compensate the voids and pressure fluctuations created by an air-powered double diaphragm (AODD) pump.
Pulsation measurement with AD dampener.
Features:
- Flow through desing keeps solids in suspension
- Totally automatic air motor-self relieves if discharge head reduces
- Low air consumption
- Bolted construction
- PFTE coated air side optional
PRINCIPLES OF OPERATION
Compressed air is introduced to the top section of the pulsation dampener at the same operating pressure of the pump. When the air opereted double diaphragm pump produces a pulse, fluid will enter the in-line dampener. As fluid enters the dampener, the trapped air behind the dampener is compressed. The fluid remains in the dampener until the system pressure returns to normal or when the pump begins another cycle. The fluid is then pushed back into the system piping as the trapped gas expands. The dampener does not restrict fluid flow, nor increase its pressure, but fills the voids and pressure flunctuations created by an air operated double diaphragm pump.
GENERAL DAMPENER INFORMATION
| Dampener Model that fits the Pump Model | |
| AD-10 (3/8" Port) |
NDP-5, NDP-15, DP-10, DP-15 |
| AD-25 (1" Port) |
NDP-20, NDP-25, NDP-32 |
| AD-40 (1-1/2" Port) |
NDP-40, XDP-40 |
| AD-50 (2" Port) |
NDP-50, NDP-80, XDP-50, XDP-80 |
|

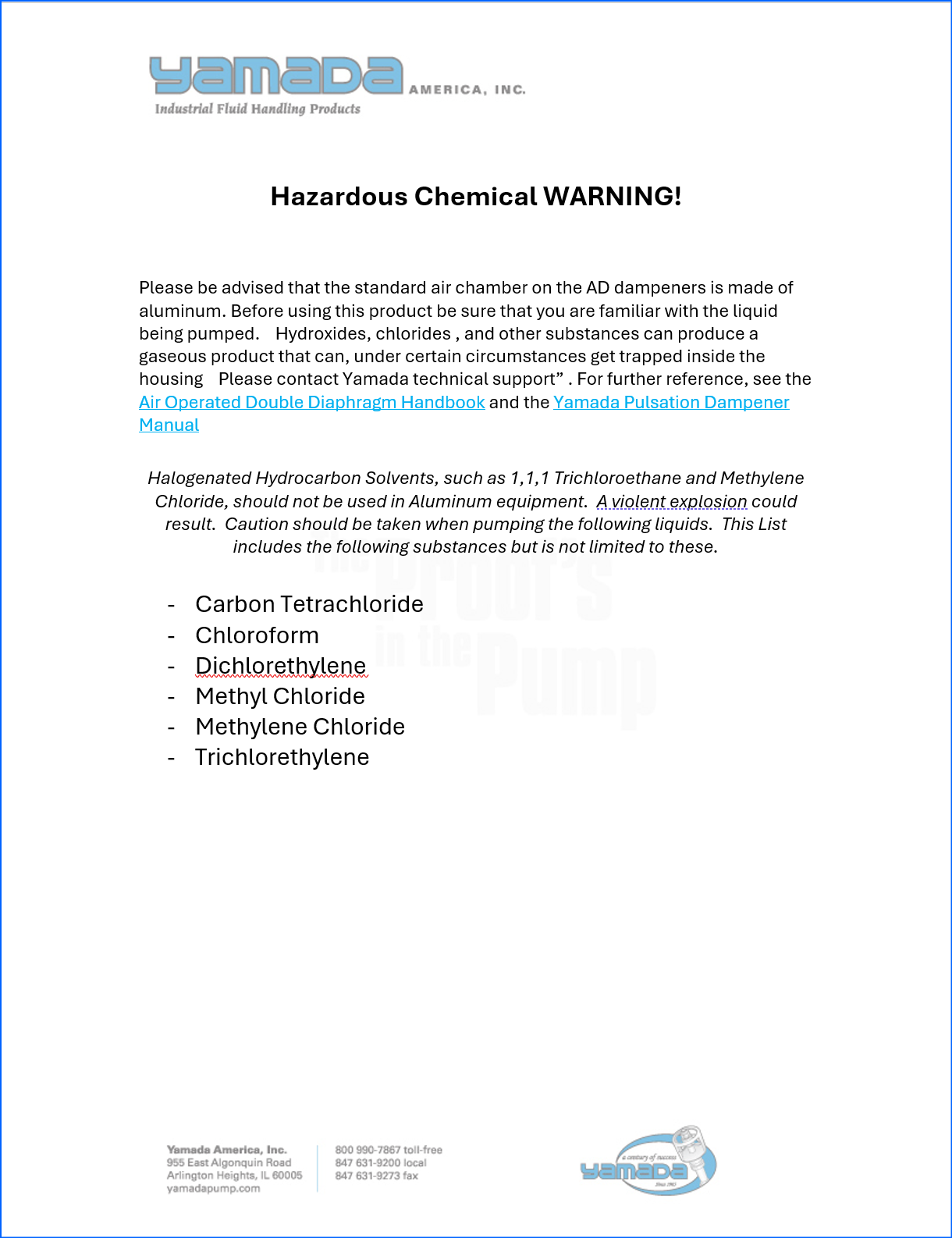

Material Available |
|
| Aluminum (ADC-12 (3/8" Port) |
All Models |
| Stainless Steel (316) |
All Models |
| Cast Iron |
AD-25, AD-40, AD-50 |
| Polypropylene (PPG) |
All Models |
| Kynar |
AD-25, AD-50 |
|
Diaphragm Available |
|
| Choice of 7 |
Neoprene, Buna N, EPDM, Hytrel®, PTFE, Santoprene®, Viton® |
|
Optional |
|
| Air Side Coating |
PTFE grey coating (XP) |
PULSATION DAMPENER MODELS
| Model # | Description |
| 853313 | AD-10AC |
| 853314 | AD-10AN |
| 853316 | AD-10AH |
| 853317 | AD-10AS |
| 853315 | AD-10AT |
| 853318 | AD-10SC |
| 853319 | AD-10SN |
| 853321 | AD-10SH |
| 853322 | AD-10SS |
| 853320 | AD-10ST |
| 853323 | AD-10PC |
| 853324 | AD-10PN |
| 853326 | AD-10PH |
| 853327 | AD-10PS |
| 853325 | AD-10PT |
| 853328 | AD-25AC |
| 853329 | AD-25AN |
| 853330 | AD-25AE |
| 853333 | AD-25AH |
| 853334 | AD-25AS |
| 853331 | AD-25AV |
| 853332 | AD-25AT |
| 853335 | AD-25SC |
| 853336 | AD-25SN |
| 853337 | AD-25SE |
| 853340 | AD-25SH |
| 853341 | AD-25SS |
| 853338 | AD-25SV |
| 853339 | AD-25ST |
| 853349 | AD-25FC |
| 853350 | AD-25FN |
| 853351 | AD-25FE |
| 853354 | AD-25FH |
| 853355 | AD-25FS |
| 853352 | AD-25FV |
| 853353 | AD-25FT |
| 853342 | AD-25PC |
| 853343 | AD-25PN |
| 853344 | AD-25PE |
| 853347 | AD-25PH |
| 853348 | AD-25PS |
| 853345 | AD-25PV |
| 853346 | AD-25PT |
| 854973 | AD-25VEN |
| 854976 | AD-25VHN |
| 854977 | AD-25VSN |
| 854974 | AD-25VVN |
| 854975 | AD-25VTN |
| 853361 | AD-40AC |
| 853362 | AD-40AN |
| 853363 | AD-40AE |
| 853366 | AD-40AH |
| 853367 | AD-40AS |
| 853364 | AD-40AV |
| 853365 | AD-40AT |
| 853368 | AD-40SC |
| 853369 | AD-40SN |
| 853370 | AD-40SE |
| 853373 | AD-40SH |
| 853374 | AD-40SS |
| 853371 | AD-40SV |
| 853372 | AD-40ST |
| 853382 | AD-40FC |
| 853383 | AD-40FN |
| 853384 | AD-40FE |
| 853387 | AD-40FH |
| 853388 | AD-40FS |
| 853385 | AD-40FV |
| 853386 | AD-40FT |
| 853375 | AD-40PC |
| 853376 | AD-40PN |
| 853377 | AD-40PE |
| 853380 | AD-40PH |
| 853381 | AD-40PS |
| 853378 | AD-40PV |
| 853379 | AD-40PT |
| 853389 | AD-50AC |
| 853390 | AD-50AN |
| 853391 | AD-50AE |
| 853394 | AD-50AH |
| 853395 | AD-50AS |
| 853392 | AD-50AV |
| 853393 | AD-50AT |
| 853396 | AD-50SC |
| 853397 | AD-50SN |
| 853398 | AD-50SE |
| 853401 | AD-50SH |
| 853402 | AD-50SS |
| 853399 | AD-50SV |
| 853400 | AD-50ST |
| 853410 | AD-50FC |
| 853411 | AD-50FN |
| 853412 | AD-50FE |
| 853415 | AD-50FH |
| 853416 | AD-50FS |
| 853403 | AD-50FV |
| 853414 | AD-50FT |
| 853403 | AD-50PC |
| 853404 | AD-50PN |
| 853405 | AD-50PE |
| 853408 | AD-50PH |
| 853409 | AD-50PS |
| 853406 | AD-50PV |
| 853407 | AD-50PT |
| 853417 | AD-50VE |
| 853420 | AD-50VH |
| 853421 | AD-50VS |
| 853418 | AD-50VV |
| 853419 | AD-50VT |
APPLICATIONS
Metering / Injection / Dosing: smoothing out discharge flow, increasing accuracy
Filter Press / Inline Filters: Increase filter efficiency by providing smooth flow.
Spraying: Smooth and consistent spray pattern is easilty accomplished.
Filing: Eliminates inconsistent filling and splashing.
Transfer: Eliminates harmful water hammer, which damages piping and valves.
INSTALLATION
Mount the pulsation dampener as close to the pump as possible. This will allow the pulsation dampener to see as much operation pressure as possible, which will increase pulsation dampener efficiency and effectiveness.
If the pulsation dampener is to be used in a low head application, you may need to add a control valve after the pulsation dampener to restrict flow and increase resistance.
Mount the pulsation dampener in a horizontal position. Vertical positioning is acceptable if you are pumping a clear fluid.
