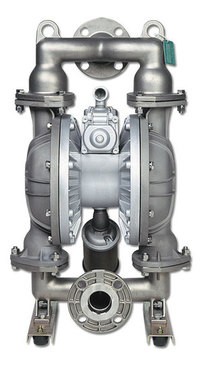

MODEL: NDP-50BST
Yamada® NDP-50BST series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 166 gallons per minute. Pumps are available in aluminum, stainless steel (316), cast iron, polypropylene, and Kynar construction, with a wide variety of diaphragm materials.
Product Details
| Inlet (in) | 2 |
| Outlet (in) | 2 |
| Max Flow (gpm) | 152 |
| Max Temp | 212 |
| Max Solid (in) | 5/16 |
| Valve Type | 3/4 |
| Air Motor Material | Aluminum |
| Body Material | Stainless Steel |
| Elastomer Material | PTFE |
Documentation
| Performance Curve | ndp-50T_perf-curve_lrg.jpg |
| BOM | NDP-50BST_Bill_of_Material.pdf |
| CAD Drawings (PDF) | PUMP_NDP-50_CAD_SS_FLG.pdf |
| CAD Drawings (DWG) | PUMP_NDP-50_CAD_SS_FLG.dwg |
