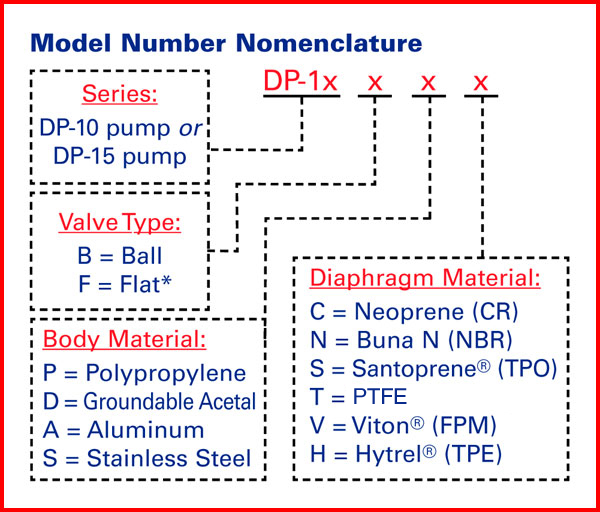

Yamada® DP-10/DP-15 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 6 gallons per minute (DP-10) or 8 gallons per minute (DP-15). DP-10 pumps are available in aluminum, stainless steel (316), and polypropylene, DP-15 pumps are available in either polypropylene or groundable acetal. A wide selection of diaphragm materials cover a variety of applications.
6 Gallons/Minute (DP-10)
3/8" NPT Fluid Port
7.4 Gallons/Minute (DP-15)
1/2" NPT Fluid Port
Intake & Discharge Connections
DP-10:

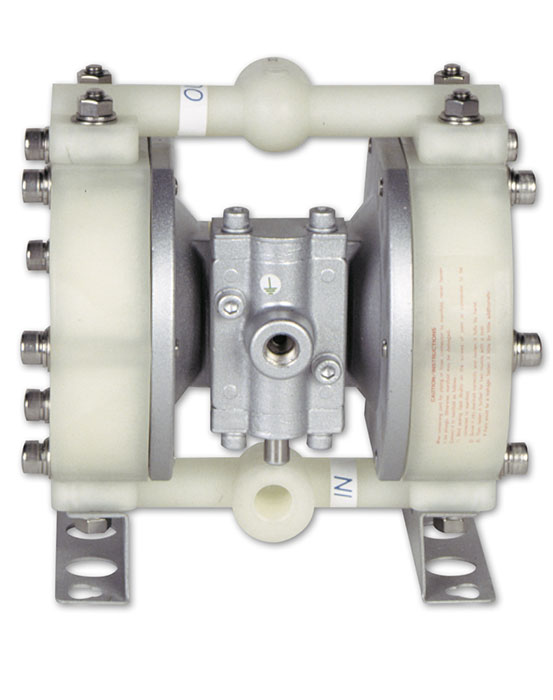

Polypropylene (PPG): 3/8" Female NPT

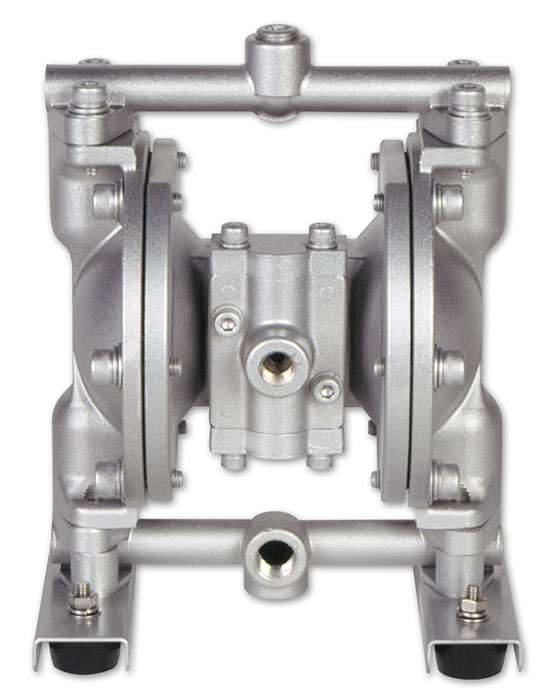

Aluminum (ADC-12): 3/8" Female NPT
Stainless Steel (316): 3/8" Female NPT
DP-15:
Polypropylene: 1/2" Female NPT

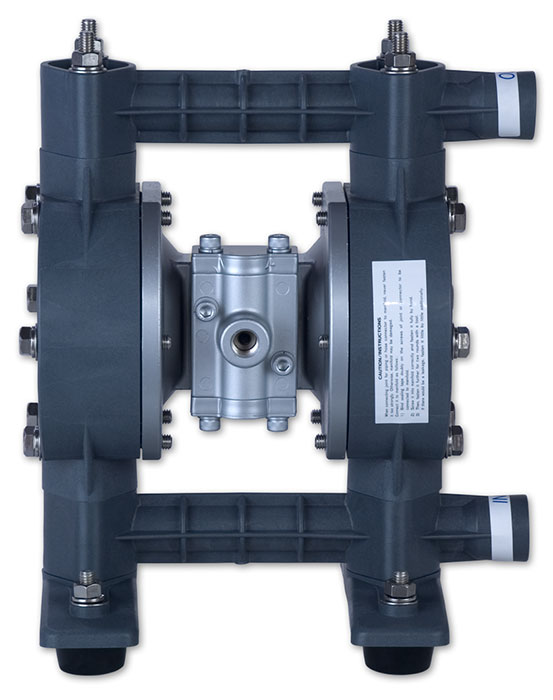

Groundable Acetal: 1/2" Female NPT
Air Inlet
1/4" Female NPT (includes ball valve)
Air Exhaust
3/8" Female NPT (includes silencer)
Maximum Liquid Temperature1
Diaphragm Material / Temperature
Buna N: 180°F (82°C)
Neoprene: 180°F (82°C)
Santoprene® (TPO) 180°F (82°C)
EPDM: 212°F (100°C)
PTFE 212°F (100°C)
Hytrel® (TPE) 248°F (120°C)
Viton® fluoroelastomer 248°F (120°C)
1 Polypropylene and acetal pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.
Air Supply Pressure (All Models)
20 to 100 PSI (1.4 to 7 kgf/cm²)
Discharge Volume Per Cycle
DP-10: 0.020 gallons (74 cc)
DP-15: 0.027 gallons (102 cc)
Maximum Cycles Per Minute
All diaphragms: 300
Maximum Size Solid
1/32" (1mm)
Maximum Dry Suction Lift
All diaphragms 10 feet
Air Motor
Standard: aluminum
Weight and Dimensions
DP-10
Dimensions: 7.32" W × 9.49" H
Net Weight: 7.9 lbs. (3.6 kg)
Ship Weight: 9.9 lbs.
DP-10
Dimensions: 7.32" W × 9.49" H
Net Weight: 11.7 lbs. (5.3 kg)
Ship Weight: 13.7 lbs.
DP-10
Dimensions: 7.72" W x 7.72" H
Net Weight: 6.8 lbs. (3.1 kg)
Shipping Weight: 8.8 lbs.
DP-15
Dimensions: 9.68" W x 11.69" H
Net Weight: 9.0 lbs. (4.0 kg)
Shipping Weight: 12 lbs.
DP-15
Dimensions: 9.68" W x 11.69" H
Net Weight: 9.0 lbs. (4.0 kg)
Shipping Weight: 12 lbs.
Notes
Hytrel®-fitted pumps include Hytrel® check balls and Buna N wetted o‑rings. Santoprene®-fitted pumps include Santoprene® check balls and EPDM wetted o‑rings.
EPRT Format
DP-10 Aluminum
DP-10 Stainless Steel
DP-10 Polypropylene
DP-15 Polypropylene/Acetal
IGS Format
DP-10 Aluminum
DP-10 Stainless Steel
DP-10 Polypropylene
DP-15 Polypropylene/Acetal
Yamada® is a registered trademark of Yamada America, Inc. Hytrel® is a registered trademark of E.I. du Pont de Nemours and Company. Santoprene® is a registered trademark of Advanced Elastomer Systems. Viton® is a registered trademark of DuPont Performance Elastomers. Due to Yamada's continued commitment to product improvement, specifications may change without notice.
