What Is an Air Valve?

An air valve is the part of an air-operated double diaphragm pump that controls how compressed air is directed inside the pump. In an air-operated double diaphragm pump, the air valve shifts compressed air from one side of the pump to the other, causing the diaphragms to move back and forth.

This shifting action is what allows the pump to create suction on one side while discharging fluid on the other. Without the air valve, the pump would not be able to cycle properly.

In simple terms, the air valve is the control center of an AODD pump’s air side.

How Does an Air Valve Work in a Diaphragm Pump?

A diaphragm pump uses compressed air to move two flexible diaphragms. The air valve controls which side of the pump receives air pressure and which side exhausts air.

During operation:

• Compressed air enters the pump through the air inlet.
• The air valve directs air to one air chamber.
• One diaphragm moves forward and pushes fluid out of the pump.
• The opposite diaphragm moves back and draws fluid into the pump.
• The air valve shifts position.
• Air is directed to the opposite chamber.
• The cycle repeats.

This alternating air movement creates the pumping action that allows an AODD pump to transfer liquids, slurries, chemicals, oils, coatings, wastewater, and other process materials.

Why the Air Valve Matters

The air valve is one of the most important components in an air-operated diaphragm pump. It affects pump reliability, startup, cycling, air efficiency, maintenance requirements, and overall performance.

A well-designed air valve helps support:

• Reliable pump cycling
• Positive shifting
• Consistent operation
• Reduced stalling risk
• Lower maintenance complexity
• Reliable startup after deadhead conditions
• Better serviceability
• Reduced parts confusion
• Long-term pump dependability

For many industrial applications, air valve reliability is critical because the pump may operate continuously, intermittently, at varying air pressures, or under changing system conditions.

Yamada’s Unified Air Valve Concept

Yamada uses a unified air valve approach across its NDP Series air-operated double diaphragm pumps. Instead of relying on many different air valve designs across different pump sizes, Yamada offers common-size air valve assemblies across multiple pump sizes.

This helps reduce:

• Reassembly confusion
• Maintenance complexity
• Parts inventory issues
• Obsolete parts concerns
• Training difficulty
• Rebuild mistakes

In maintenance departments, fewer air valve variations can make a meaningful difference. Technicians can work with a more consistent design instead of sorting through multiple valve versions, revisions, and rebuild procedures.

Truly Non-Lubricated Air Valve Design

Yamada’s patented air valve used on NDP Series pumps is designed to operate without external lubrication or pre-packing. This helps eliminate the need for routine air-line lubrication at the pump.

A non-lubricated air valve can help reduce several common problems associated with lubricated air systems, including:

• Added maintenance
• Lubricator setup and adjustment
• Oil carryover
• Possible pumpage contamination concerns
• Air-line lubrication headaches
• Additional accessory requirements

Yamada is known for its non-lubricated air valve technology for air-powered double diaphragm pumps. This design helps simplify pump operation and supports reliable performance without requiring external air-line lubrication.

For compressed-air preparation, a filter regulator is still important because clean, properly regulated air helps protect pneumatic equipment and support consistent pump operation.

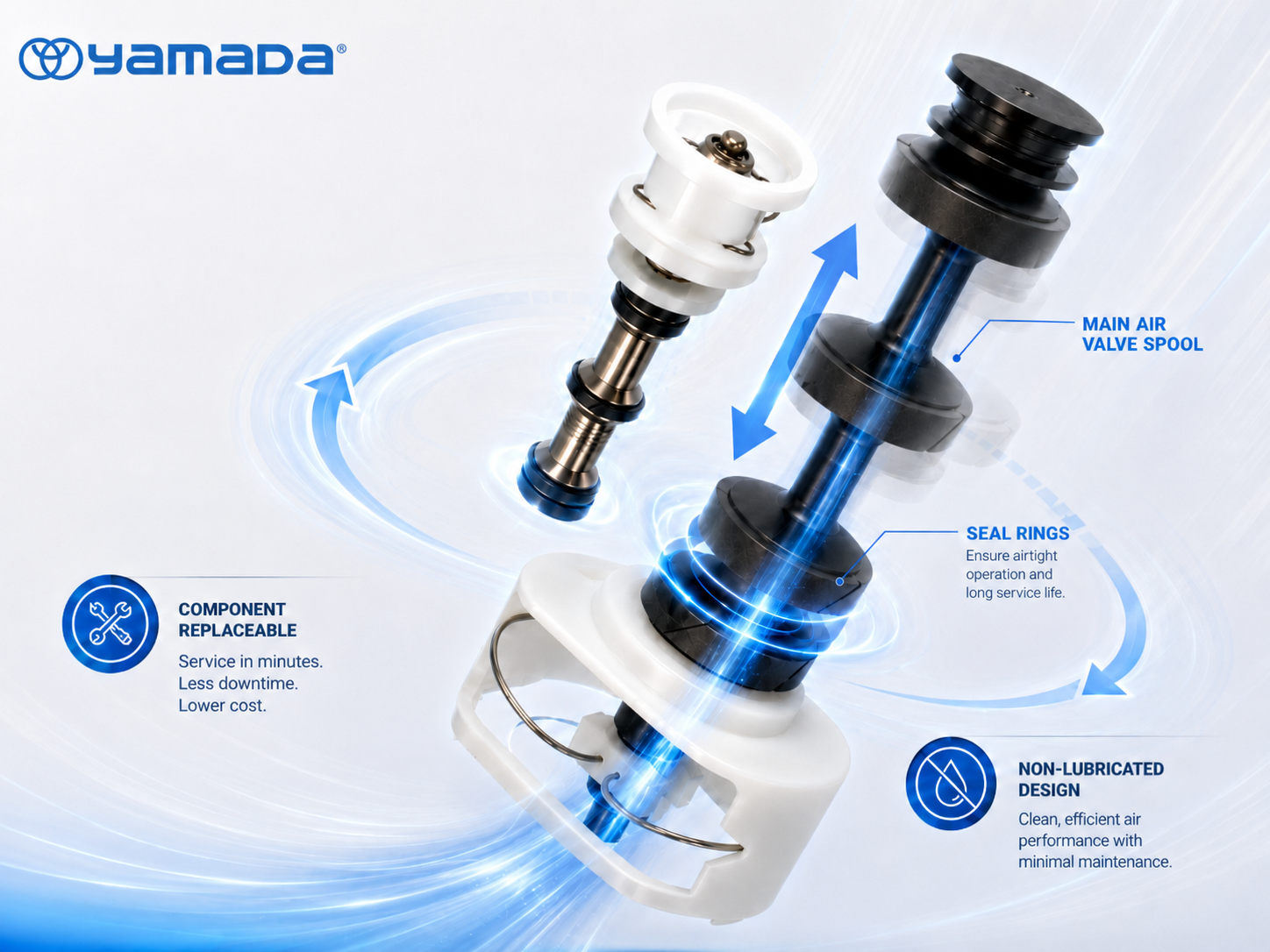

Component-Replaceable Air Valve

Yamada air valves are designed so individual components can be replaced during service. This allows the valve to be restored without requiring complete valve and housing replacement in many cases.

Component replaceability can help reduce total cost of ownership by allowing maintenance teams to replace only the needed parts instead of replacing larger assemblies unnecessarily.

This is especially helpful for facilities that maintain multiple AODD pumps and want to reduce inventory cost, simplify rebuild work, and improve pump uptime.

Non-Stalling Air Valve Operation

Yamada NDP Series pumps incorporate a patented non-centering, spring-assisted shifter designed to help ensure a positive shift during operation. This feature helps reduce the risk of air valve stalling and supports reliable pump cycling.

The spring-assisted design also helps with startup after deadhead conditions, where the pump may be stopped against pressure and then needs to resume operation when the discharge line opens.

Yamada’s 304 stainless steel C-springs are designed for durability and long operating life. According to Yamada’s air valve design information, these springs are tested to last over 300 million cycles.

What Does “Non-Stalling” Mean?

In an AODD pump, stalling can occur when the air valve does not shift properly and the pump stops cycling. A non-stalling air valve design helps keep the pump moving by promoting a positive air valve shift.

Non-stalling performance is important in applications where:

• The pump operates intermittently
• The pump experiences changing discharge pressure
• The system may deadhead
• Air pressure varies
• The pump must restart reliably
• Production uptime matters

A non-stalling air valve helps make the pump more dependable in real-world operating conditions.

Air Valve and Compressed Air Quality

Even with a strong air valve design, compressed-air quality still matters. Dirty, wet, or contaminated air can affect downstream pneumatic equipment over time.

Compressed air may contain:

• Water
• Oil mist
• Dirt
• Rust
• Pipe scale
• Other particles

Installing a properly sized filter regulator upstream of the pump helps clean and control the air before it reaches the air valve. This can help support consistent pump operation and protect the pump’s air-side components.

For more details, visit What Is a Filter Regulator?

Air Valve vs. Diaphragm

The air valve and diaphragm work together, but they do different jobs.

The air valve controls compressed air movement inside the pump. The diaphragm is the flexible pumping element that moves back and forth to draw fluid in and push fluid out.

Together, these parts create the pumping action:

• The air valve directs compressed air.
• The diaphragms move in response.
• Check valves control fluid direction.
• Fluid is drawn into the pump and discharged out.

To understand the full pumping cycle, see What Is a Diaphragm Pump?

Air Valve and Pump Performance

The air valve plays a major role in pump performance because it controls how the pump cycles. The pump’s flow rate, air consumption, stroke rate, and response to pressure changes are all influenced by the air-side operation.

Pump performance also depends on:

• Air supply pressure
• Air volume available
• Discharge pressure
• Fluid viscosity
• Suction lift
• System restrictions
• Piping layout
• Pump size
• Diaphragm material
• Application requirements

For more information on flow, pressure, and system conditions, visit Understanding Performance Curves.

Applications That Rely on Air Valve Reliability

Yamada air-operated double diaphragm pumps are used across many fluid-transfer applications where reliable air valve performance matters, including:

• Chemical transfer
• Paint and coatings
• Automotive fluid transfer
• Food, cosmetics, and pharmaceutical applications
• Wastewater and sludge transfer
• Filter press applications
• Mining applications
• Petroleum, oil, and gas
• General industrial fluid transfer

In these applications, the air valve helps the pump cycle reliably while the wetted side of the pump handles the fluid being transferred.

Related AODD Pump Accessories

The air valve is built into the pump, but other accessories may help support system performance and air-side protection.

Related Yamada accessories and terminology include:

• Filter/regulators for air preparation
• Pulsation dampeners for reducing pressure fluctuations
• Liquid level controllers for level-based operation
• Batch controllers for controlled transfer
• Diaphragm monitor systems for leak detection support
• Dry run detectors for pump protection support

Frequently Asked Questions About Air Valves

What is an air valve on a diaphragm pump?

An air valve is the component that controls compressed air movement inside an air-operated diaphragm pump. It shifts air from one side of the pump to the other so the diaphragms can move back and forth.

Why is the air valve important?

The air valve controls the pump’s cycling action. A reliable air valve helps support consistent operation, positive shifting, restart capability, and reduced stalling risk.

Does an air valve need lubrication?

Yamada’s patented air valve on NDP Series pumps is designed for non-lubricated operation and does not require external lubrication or pre-packing.

What does non-stalling air valve mean?

A non-stalling air valve design helps the pump continue cycling by promoting a positive shift. This helps reduce the chance that the pump will stop because the air valve failed to shift properly.

What is a spring-assisted shifter?

A spring-assisted shifter helps the air valve shift positively during pump operation. Yamada NDP Series pumps use a patented non-centering, spring-assisted shifter with 304 stainless steel C-springs.

Does compressed air quality affect the air valve?

Yes. Dirty, wet, or contaminated compressed air can affect pneumatic components over time. A properly selected filter regulator helps clean and control air before it reaches the pump.

Is the air valve the same as the diaphragm?

No. The air valve controls compressed air movement. The diaphragm is the flexible pumping element that moves fluid through the pump.

Can air valve components be replaced?

Yamada air valves are designed with component replaceability, allowing individual components to be serviced without replacing the entire valve and housing in many cases.
