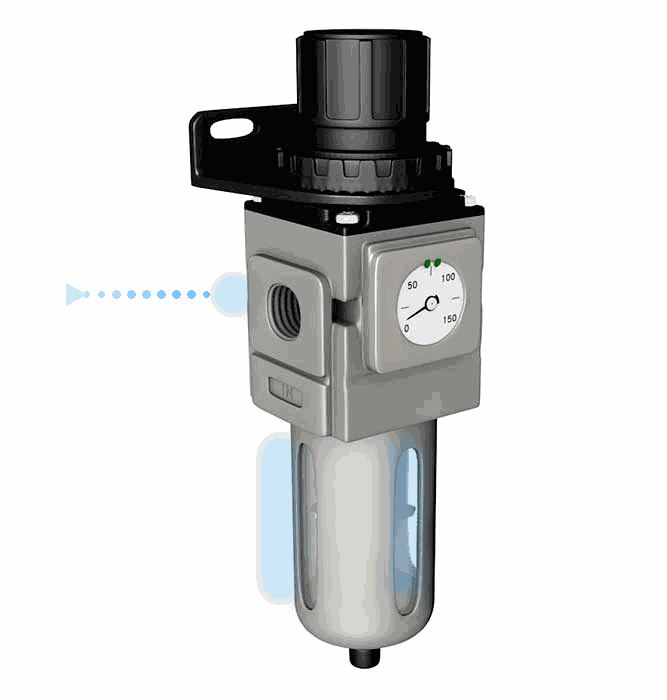

What Is a Filter Regulator?

A filter regulator is a compressed-air preparation device that helps clean and control the air supply before it reaches pneumatic equipment. For an air-operated double diaphragm pump, a filter regulator helps remove contaminants from the air line and regulate incoming air pressure so the pump can operate more consistently.

Yamada diaphragm pumps are powered by compressed air. When air leaves a compressor, it may contain moisture, oil vapor, dirt, rust, pipe scale, or other particles. That air also needs to be controlled to match the operating requirements of the pump. A filter regulator helps do both jobs in one compact air-line accessory.

In simple terms, the filter cleans the compressed air, and the regulator controls the air pressure delivered to the pump.

Why Compressed Air Needs to Be Filtered and Regulated

Compressed air is not always clean or dry when it leaves the compressor. As air moves through the compressed-air system, it can pick up contaminants from piping, fittings, tanks, hoses, and moisture in the air supply.

Common compressed-air contaminants include:

• Water
• Oil mist or oil vapor
• Dust
• Dirt
• Rust
• Pipe scale
• Other solid particles

If these contaminants reach downstream pneumatic equipment, they may contribute to wear, sticking, inconsistent operation, reduced performance, or premature component failure. For AODD pump systems, clean and properly regulated air helps support reliable operation of the pump’s air side, including the air valve.

What Does the Filter Do?

The filter portion of a filter regulator is designed to remove unwanted material from the compressed-air stream. As air passes through the filter, solid particles are trapped, and liquid contaminants such as water or oil can be separated from the air.

The filter helps protect downstream pneumatic components by reducing the amount of debris and moisture entering the air system. This is especially important for air-operated equipment such as diaphragm pumps, control valves, cylinders, air motors, and other pneumatic devices.

What Does the Regulator Do?

The regulator portion controls the air pressure delivered to the pump or downstream equipment. By adjusting the regulator, the operator can set the desired air pressure for the application.

For an AODD pump, incoming air pressure affects pump operation, including:

• Pump speed
• Flow rate
• Discharge pressure capability
• Air consumption
• System response
• Overall transfer performance

Regulating air pressure helps prevent over-supplying the pump and allows the system to be adjusted for the fluid, piping layout, pressure requirement, and desired flow rate. For more help understanding pump performance, see Understanding Performance Curves.

Why Use a Filter Regulator with a Diaphragm Pump?

A filter regulator helps protect the air side of a diaphragm pump and gives the operator better control over pump performance. Since air-operated diaphragm pumps use compressed air to move the diaphragms back and forth, the quality and pressure of that air matter.

A filter regulator may help:

• Remove dirt, rust, and pipe scale from compressed air
• Separate moisture from the air supply
• Protect the pump’s air valve and pneumatic components
• Improve operating consistency
• Help control pump speed and flow
• Reduce the risk of air-side contamination
• Support better pump performance and service life

For many industrial applications, installing a properly sized filter regulator is a simple way to support more dependable pump operation.

Where Is a Filter Regulator Installed?

A filter regulator is installed in the compressed-air line upstream of the pump or pneumatic device. In an AODD pump installation, it is typically placed before the pump’s air inlet so incoming compressed air is cleaned and regulated before entering the pump.

Filters are commonly installed upstream of:

• Regulators
• Lubricators
• Directional control valves
• Air valves
• Cylinders
• Air motors
• Air-operated diaphragm pumps

In many pump systems, the filter regulator is mounted close enough to the pump for convenient adjustment and maintenance, while still allowing proper piping, hose routing, drainage, and access.

Yamada Filter/Regulators

Yamada Filter/Regulators are designed for use with compressed-air-operated pumping systems. They help prepare the air supply by filtering contaminants and regulating air pressure before air reaches the pump.

Filter/regulators are one of several Yamada diaphragm pump accessories that can help improve pump operation, system control, and reliability.

Filter Regulator vs. Air Filter

An air filter removes contaminants from compressed air. A regulator controls air pressure. A filter regulator combines both functions into one unit.

A standalone filter may clean the air, but it does not control pressure. A standalone regulator may control pressure, but it does not remove particles or moisture. A filter regulator provides both air cleaning and pressure control in a single air-line device.

Filter Regulator vs. Lubricator

A filter regulator cleans and controls compressed air. A lubricator adds a controlled amount of oil mist into the air stream for equipment that requires lubrication.

Many modern air-operated diaphragm pumps are designed to operate without air-line lubrication, but the correct air preparation setup depends on the pump model and system requirements. Always follow the pump manufacturer’s recommendations for air supply, filtering, regulation, and lubrication.

For more related terminology, see What Is an Air Valve? and Advantages of Diaphragm Pumps.

How Air Pressure Affects AODD Pump Performance

Air pressure is one of the main ways to control an air-operated diaphragm pump. Increasing or decreasing the air pressure can change how the pump responds in the system.

Depending on the application, air pressure may affect:

• Flow rate
• Stroke speed
• Discharge pressure
• Ability to overcome system resistance
• Air consumption
• Pulsation behavior
• Overall transfer control

If the air pressure is too low, the pump may not deliver the required flow or pressure. If the air pressure is higher than needed, the pump may run faster than necessary, use more air, or create more pulsation than the system requires.

For systems where smoother discharge flow is important, a pulsation dampener may also be considered.

Applications That Use Filter Regulators

Filter regulators are used anywhere compressed air needs to be cleaned and controlled before reaching air-powered equipment. In diaphragm pump systems, they are commonly used across many Yamada application areas, including:

• Chemical transfer
• Paint and coatings
• Automotive fluid transfer
• Food, cosmetics, and pharmaceutical applications
• Wastewater and sludge transfer
• Filter press applications
• Mining applications
• Petroleum, oil, and gas
• General industrial fluid transfer

Any air-powered pump system can benefit from clean, properly regulated air.

Choosing a Filter Regulator

The right filter regulator depends on the pump and the compressed-air system. It should be sized and selected based on the operating conditions and air requirements of the pump.

Important selection factors include:

• Pump model
• Air inlet size
• Required air flow
• Required pressure range
• Compressor capacity
• Air-line size
• Contaminant level
• Moisture level
• Installation location
• Drain requirements
• Operating environment
• Maintenance access

A properly selected filter regulator should provide the air flow and pressure needed by the pump while helping reduce contamination in the air supply.

Related Pump Accessories

A filter regulator is one part of a complete AODD pump installation. Depending on the system, other accessories may also be useful.

Related Yamada accessories include:

• Pulsation dampeners for reducing pressure fluctuations
• Liquid level controllers for level-based pump operation
• Batch controllers for controlled transfer applications
• Diaphragm monitor systems for leak detection support
• Dry run detectors for pump protection support
• Solenoid controlled options for automated pump control

Frequently Asked Questions About Filter Regulators

What is a filter regulator used for?

A filter regulator is used to clean compressed air and control air pressure before the air reaches pneumatic equipment. In an AODD pump system, it helps protect the pump’s air side and regulate the air supply.

Why does a diaphragm pump need a filter regulator?

A diaphragm pump uses compressed air to operate. A filter regulator helps remove dirt, rust, moisture, and other contaminants from the compressed air while also controlling air pressure to the pump.

Does a filter regulator control pump speed?

Yes. On an air-operated diaphragm pump, controlling air pressure can affect pump speed, flow rate, and system performance. The regulator helps adjust the air supply to the needs of the application.

Does a filter regulator remove water?

The filter portion can help separate liquid water from compressed air, depending on the filter type, air conditions, and installation. Compressed-air systems with heavy moisture may also require additional drying or moisture-control equipment.

Where should a filter regulator be installed?

A filter regulator is installed in the air line before the pump or air-powered device. In a diaphragm pump system, it should be upstream of the pump’s air inlet.

Is a filter regulator the same as an air regulator?

No. An air regulator controls pressure, but a filter regulator combines pressure control with air filtration. The filter removes contaminants, while the regulator adjusts air pressure.

Is a filter regulator the same as an FRL?

A filter regulator is part of an FRL-style air preparation setup. FRL usually means filter, regulator, and lubricator. A filter regulator combines the filter and regulator functions but does not include a lubricator unless it is part of a separate FRL assembly.

How do I choose the right filter regulator?

Start with the pump model, air inlet size, required air flow, pressure range, air-line size, compressor capacity, and operating environment. Yamada can help match the filter regulator to the pump and application.
