PTFE is one of the most chemically resistant diaphragm materials available, which makes it an excellent choice for many aggressive chemicals, solvents, and corrosive fluids. That broad chemical resistance can make PTFE an easy default during pump selection—but compatibility is only the first part of the decision.

Inside an air-operated double-diaphragm (AODD) pump, the diaphragm is not a stationary liner or gasket. It is a moving mechanical component that repeatedly flexes as the pump cycles. The material must survive the fluid while also tolerating the application’s cycling rate, suction conditions, positive inlet pressure, temperature, abrasives, and assembly loads.

The correct question is not simply, “Will PTFE resist this chemical?” It is, “Which compatible diaphragm material will deliver the best overall service in this exact pump and system?”

Why PTFE Is Often Chosen First

Yamada identifies PTFE as a diaphragm option for highly aggressive fluids such as solvents or acids, with a published general temperature range of 40°F to 212°F on its diaphragm terminology page. PTFE is also commonly considered when FDA-related material requirements are important or when the transferred fluid is highly aggressive, such as acids.

See Yamada’s overview of available materials: What Is a Diaphragm?

The appeal is understandable: PTFE is resistant to a very broad range of chemicals. But broad chemical resistance should not be mistaken for universal mechanical superiority. PTFE is not an elastomer, and it is generally less flexible and less forgiving of repeated mechanical stress than rubber and thermoplastic diaphragm materials.

Material Selection Insight

PTFE may pass the chemical-resistance test and still be the wrong mechanical fit for the application.

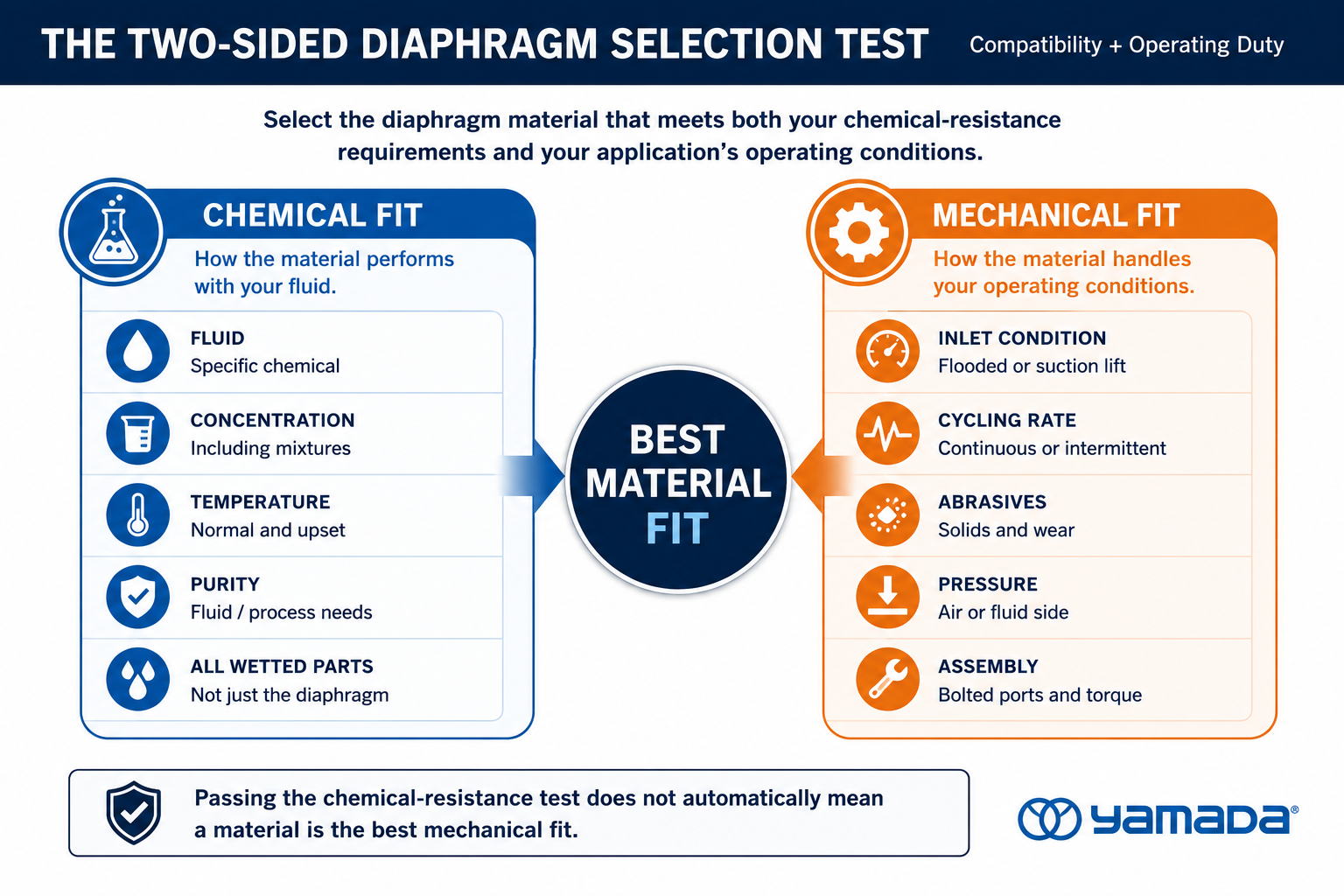

Chemical Compatibility Is the First Gate—not the Finish Line

A chemical-compatibility chart is a useful starting point, but it is not a final pump selection. Requirements can change with concentration, temperature, contaminants, cleaning chemicals, dissolved solids, and upset conditions. A material that performs well at room temperature may behave differently at a higher operating temperature or under pressure.

The diaphragm is also only one part of the wetted path. Pump body material, valve balls, valve seats, O-rings, seals, manifolds, and other wetted components must be reviewed together. Selecting a PTFE diaphragm does not protect an incompatible O-ring, valve seat, or center-body material elsewhere in the pump.

Use Yamada’s online resource as a starting point: Chemical Compatibility—then confirm the complete pump construction and actual process conditions.

When PTFE May Be the Right Choice

PTFE is often considered when one or more of the following conditions apply:

• The fluid is highly aggressive and compatible alternatives are limited.
• The application involves solvents or chemicals for which PTFE provides the best wetted-material compatibility.
• FDA-compliant material selection or process purity favors PTFE.
• The fluid is not significantly abrasive and the operating conditions remain within the exact pump model’s PTFE limits.
• The user accepts the performance, maintenance, and cost tradeoffs associated with the PTFE configuration.
• The application requires ultra-high-purity material transfer.

In these cases, PTFE is not a compromise—it could be the best material the application requires. The key is to select it deliberately rather than automatically.

When Another Material May Provide Better Overall Service

Yamada pumps are offered with multiple rubber and thermoplastic diaphragm options because no single material is best for every fluid and operating condition. When chemical compatibility allows, a more flexible material may provide better durability, suction performance, abrasion resistance, or total cost of ownership.

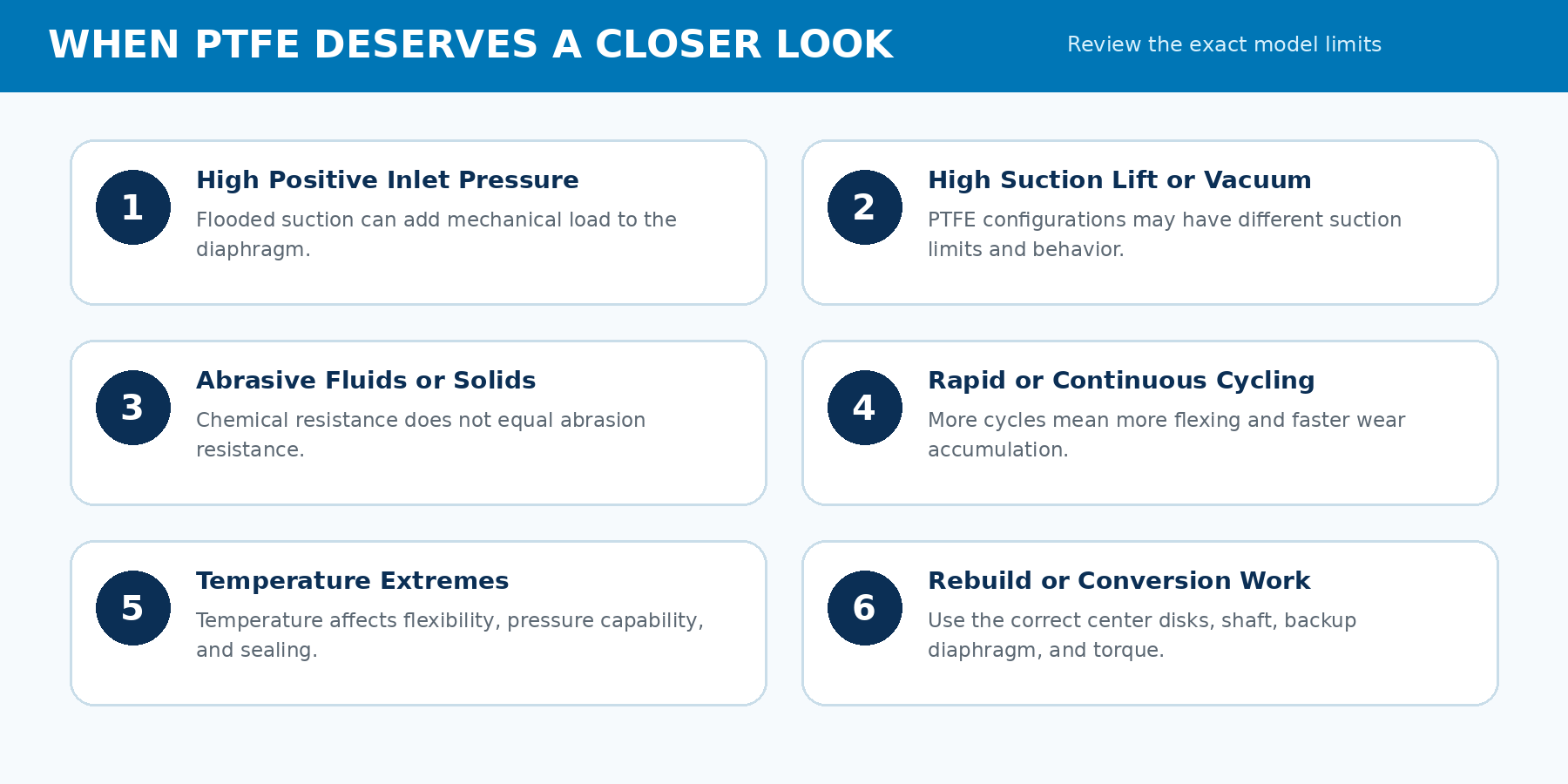

Operating Conditions That Deserve Extra Attention With PTFE

The following conditions do not automatically rule out PTFE, but they should trigger a model-specific review before the pump is ordered or converted.

1Positive Inlet Pressure and Flooded Suction

A liquid supply above the pump can create positive pressure at the inlet. That pressure acts on the diaphragm even before compressed air is applied. PTFE has lower tolerance for mechanical deformation than more elastic diaphragm materials, so excessive inlet pressure can shorten service life or contribute to sealing problems. Review the exact pump manual and data sheet rather than applying a universal limit. For applications involving higher positive inlet pressure, certain Yamada pump models may be available with the Ultimate PTFE diaphragm. Confirm model availability and chemical compatibility before selection.

2High Suction Lift or Vacuum

Suction-lift applications place the diaphragm and liquid-end check valves under demanding conditions. PTFE-fitted configurations may have different suction performance or vacuum limits than rubber-fitted configurations. When suction lift is important, compare the model-specific specifications and ask whether a compatible elastomeric or thermoplastic diaphragm would provide a better fit. For larger flow rates with suction lift, Yamada has introduced a full-flow 2-inch PTFE diaphragm. See the NDP-500 product information for model-specific performance details.

3Abrasives and Suspended Solids

PTFE’s resistance to chemical attack does not make it the best material for abrasion. Crystals, pigments, catalysts, ceramic particles, metal fines, and other suspended solids can wear a moving diaphragm and the rest of the liquid end. Where chemistry allows, Santoprene, Neoprene, or a model-specific Ultimate diaphragm may be considered for abrasive duty. PTFE check balls are relatively soft, allowing particles to become embedded in their surfaces, and are not ideal for erosive liquids.

4Rapid Cycling and Overspeeding

Every pump cycle is another flex of the diaphragm. Running any pump at maximum speed can accumulate wear quickly, especially if the pump is allowed to run dry at high speed for extended periods. A larger pump operating more slowly may provide the required flow with fewer cycles and less liquid velocity. This may improve diaphragm life and overall pump longevity. Review the performance curve—see our Understanding Performance Curves page—and size the pump with reasonable operating margin.

5Temperature and Pressure

Temperature affects chemical compatibility, flexibility, pressure capability, and sealing. The pump body may have a different temperature limit than the diaphragm material, and polypropylene pumps may be limited by the body material even when the selected diaphragm has a higher rating. Normal and upset temperatures should also both be considered.

6Reassembly, Torque, and Material Conversion

PTFE and rubber-fitted versions of some pump sizes use different center disks, shafts, backup diaphragms, or related parts. Converting diaphragm material may require more than replacing two diaphragms. Incorrect parts, damaged sealing surfaces, or improper fluid-chamber torque can create premature failure. Follow the maintenance manual and bill of materials for the exact model.

Service Reminder

Do not convert a pump from rubber or thermoplastic diaphragms to PTFE—or from PTFE to another material—without confirming every required center shaft, center disk, backup diaphragm, ball, seat, and O-ring component for that model.

Diaphragm Material Can Change Pump Performance

The same pump model may have separate published performance curves for rubber- and PTFE-fitted configurations. Current Yamada data sheets also show that discharge volume per cycle can differ between rubber- and PTFE-fitted configurations. That difference can affect cycle rate, air consumption at the desired operating point, and how the pump should be sized.

Before final selection, review the exact pump series under NDP Data Sheets and compare the applicable performance curve.

A PTFE-fitted pump should not be assumed to deliver the same displacement per stroke or the same suction behavior as the rubber-fitted version merely because the port size and air motor are the same.

Think in Terms of Total Cost—not Just Initial Compatibility

A diaphragm material decision affects more than the purchase price of the pump. The true cost includes:

• Initial pump price and any material/configuration adder
• Liquid-end repair-kit cost
• Labor required to isolate, decontaminate, rebuild, and restart the pump
• Production downtime and lost throughput
• Cleanup, disposal, and environmental risk following a diaphragm failure
• Spare-parts inventory and the frequency of planned maintenance

A compatible rubber or thermoplastic diaphragm that lasts longer in the actual duty may cost less over time than PTFE. Conversely, when the chemical truly requires PTFE, selecting a less compatible material to save money can create a much larger failure cost. Total cost of ownership only improves when chemistry, mechanics, and compatibility are all aligned.

The Best Diaphragm Material Is Application-Specific

PTFE remains one of the most important diaphragm materials available for AODD pumps. For highly aggressive chemicals, solvents, acids, purity-sensitive processes, and other demanding services, it may be exactly the right choice.

But PTFE should not be selected solely because it has the broadest chemical-resistance reputation. A diaphragm must also flex, seal, cycle, and survive the system’s inlet conditions, suction requirements, temperature, speed, abrasives, and maintenance practices. Cleaning methods, installation and operating practices, and process chemicals must also be considered because they may expose the pump to conditions different from the normal process fluid.

Start with chemical compatibility, then evaluate the mechanics. The best diaphragm material is the one that satisfies both.

Selection Disclaimer

Chemical-compatibility information is a general guide. Actual service life depends on the exact fluid, concentration, temperature, pressure, abrasives, cycling rate, installation, and pump construction. Confirm final selection with the applicable Yamada data sheet, maintenance manual, chemical-resistance resources, and your Yamada representative.
