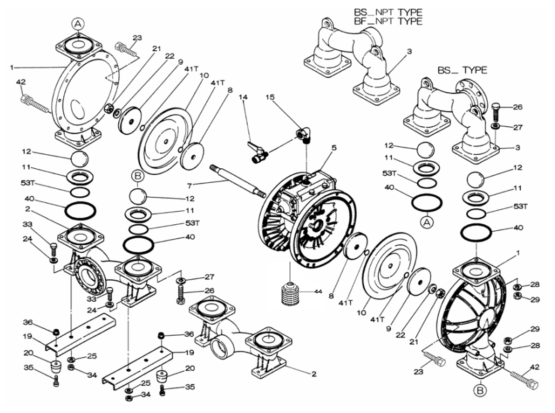

Product NDP-80BFH

NDP-80BFH
Product Number Image Description Reference Number Quantity Action
713158 713158 Out Chamber 1 2
Add to Cart
713170 713170 In Manifold - NPT 2 1
Add to Cart
713167 713167 Out Manifold - NPT 3 1
Add to Cart
803113 803113 Body Assembly 5 1
Add to Cart
711901 711901 Center Rod 7 1
Add to Cart
711906 711906 Center Disk 8 2
Add to Cart
713371 713371 Center Disk 9 2
Add to Cart
771705 771705 Diaphragm 10 2
Add to Cart
771795 771795 Valve Seat 11 4
Add to Cart
773144 773144 Ball 12 4
Add to Cart
684322 684322 Ball Valve 14 1
Add to Cart
682523 682523 Elbow 15 1
Add to Cart
711912 711912 Pump Base 19 2
Add to Cart
771402 771402 Cushion 20 4
Add to Cart
683408 683408 Nut 21 2
Add to Cart
682740 682740 Coned Disk Spring 22 2
Add to Cart
686161 686161 Bolt 23 20
Add to Cart
631917 631917 Wave Washer 23 20
Add to Cart
631014 631014 Plain Washer 24 4
Add to Cart
631917 631917 Wave Washer 25 4
Add to Cart
611204 611204 Bolt 26 16
Add to Cart
631015 631015 Plain Washer 27 16
Add to Cart
631918 631918 Spring Lock Washer 28 16
Add to Cart
627014 627014 Nut 29 16
Add to Cart
611177 611177 Bolt 33 4
Add to Cart
627013 627013 Nut 34 4
Add to Cart
611149 611149 Bolt 35 4
Add to Cart
682276 682276 Nut with Flange 36 4
Add to Cart
640078 640078 O-ring 40 4
Add to Cart
686164 686164 Bolt 42 4
Add to Cart
631917 631917 Wave Washer 42 4
Add to Cart
804764 804764 Muffler 44 1
Add to Cart
711935 711935 Air Chamber 5 2
Add to Cart
711936 711936 Body 5 1
Add to Cart
772689 772689 Throat Bearing 5 2
Add to Cart
711937 711937 Spring 5 2
Add to Cart
771740 771740 Valve Seat 5 2
Add to Cart
832163 832163 Pilot Valve Assy 5 2
Add to Cart
640020 640020 O-ring 5 2
Add to Cart
685444 685444 Packing 5 2
Add to Cart
640029 640029 O-ring 5 2
Add to Cart
771742 771742 Gasket 5 2
Add to Cart
683812 683812 Flat Head Bolt 5 12
Add to Cart
802971 802971 Valve Body Assembly 5 1
Add to Cart
771712 771712 Gasket 5 1
Add to Cart
684240 684240 Bolt 5 6
Add to Cart
684987 684987 Plain Washer 5 12
Add to Cart
711931 711931 Valve Body 5 1
Add to Cart
580999 580999 Cap A 5 1
Add to Cart
581000 581000 Cap B 5 1
Add to Cart
771735 771735 Spring Stopper 5 1
Add to Cart
712976 712976 Reset Button 5 1
Add to Cart
771738 771738 Gasket 5 2
Add to Cart
685036 685036 Bolt 5 8
Add to Cart
805084 805084 C-Spool Assy (CF) 5 1
Add to Cart
803675 803675 Sleeve Assembly 5 1
Add to Cart
640005 640005 O-ring 5 1
Add to Cart
684128 684128 Cushion 5 4
Add to Cart
803675 803675 Sleeve Assembly 0 1
Add to Cart
640036 640036 O-ring 0 6
Add to Cart
805085 805085 Spool Assy (CF) 0 1
Add to Cart
771735 771735 Spring Stopper 0 1
Add to Cart
711932 711932 C-Spring 0 2
Add to Cart
771734 771734 Block 0 1
Add to Cart
