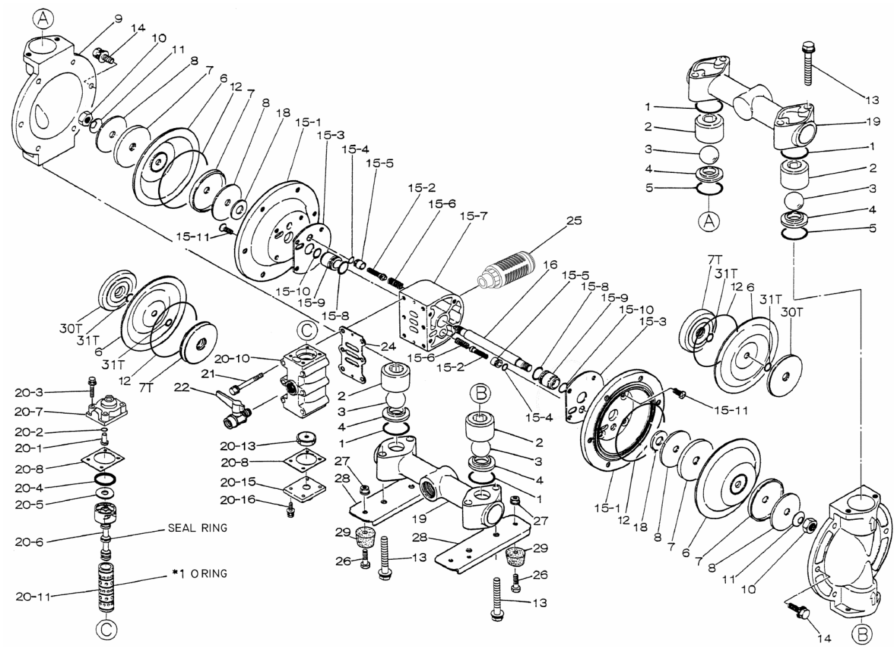

Product NDP-25BAC
| Product Number | Image | Description | Reference Number | Quantity | Action |
|---|---|---|---|---|---|
| 640044 |  |
O-ring | 1 | 4 | Add to Cart |
| 711702 |  |
Valve Stopper | 2 | 4 | Add to Cart |
| 770556 |  |
Ball | 3 | 4 | Add to Cart |
| 590087 |  |
Valve Seat | 4 | 4 | Add to Cart |
| 640134 |  |
O-ring | 5 | 2 | Add to Cart |
| 772961 |  |
Diaphragm | 6 | 2 | Add to Cart |
| 716258 |  |
Center Disk | 7 | 4 | Add to Cart |
| 716259 |  |
Plain Washer | 8 | 4 | Add to Cart |
| 711687 |  |
Out Chamber | 9 | 2 | Add to Cart |
| 682263 |  |
Nut | 10 | 2 | Add to Cart |
| 682730 |  |
Coned Disk Spring | 11 | 2 | Add to Cart |
| 611185 |  |
Bolt | 13 | 8 | Add to Cart |
| 681917 |  |
Wave Washer | 13 | 8 | Add to Cart |
| 621185 |  |
Bolt | 14 | 12 | Add to Cart |
| 631917 |  |
Wave Washer | 14 | 12 | Add to Cart |
| 804665 |  |
Body Assembly | 15 | 1 | Add to Cart |
| 715939 |  |
Air Chamber | 15 | 2 | Add to Cart |
| 802360 |  |
Pilot Valve Assy. | 15 | 2 | Add to Cart |
| 771057 |  |
Gasket | 15 | 2 | Add to Cart |
| 640009 |  |
O-ring | 15 | 2 | Add to Cart |
| 771945 |  |
Valve Seat | 15 | 2 | Add to Cart |
| 708666 |  |
Spring | 15 | 2 | Add to Cart |
| 709812 |  |
Body | 15 | 1 | Add to Cart |
| 685276 |  |
O-ring | 15 | 2 | Add to Cart |
| 772703 |  |
Throat Bearing | 15 | 2 | Add to Cart |
| 685414 |  |
Packing | 15 | 2 | Add to Cart |
| 682486 |  |
Flat Head Bolt | 15 | 8 | Add to Cart |
| 709162 |  |
Center Rod | 16 | 1 | Add to Cart |
| 771054 |  |
Cushion | 18 | 2 | Add to Cart |
| 831281 |  |
Manifold | 19 | 2 | Add to Cart |
| 802362 |  |
Valve Body Assembly | 20 | 1 | Add to Cart |
| 709161 |  |
Reset Button | 20 | 1 | Add to Cart |
| 640005 |  |
O-ring | 20 | 1 | Add to Cart |
| 682704 |  |
Bolt | 20 | 4 | Add to Cart |
| 771241 |  |
Packing | 20 | 1 | Add to Cart |
| 715961 |  |
Plain Washer | 20 | 1 | Add to Cart |
| 802400 |  |
C Spool Valve Assy. | 20 | 1 | Add to Cart |
| 771053 |  |
Seal Ring | 20 | 5 | Add to Cart |
| 710221 |  |
Cap | 20 | 1 | Add to Cart |
| 771240 |  |
Gasket | 20 | 2 | Add to Cart |
| 711639 |  |
Valve Body | 20 | 1 | Add to Cart |
| 803931 |  |
Sleeve Assembly | 20 | 1 | Add to Cart |
| 771080 |  |
O-ring | 20 | 6 | Add to Cart |
| 771914 |  |
Cushion | 20 | 1 | Add to Cart |
| 709305 |  |
Cap | 20 | 1 | Add to Cart |
| 682262 |  |
Bolt | 20 | 4 | Add to Cart |
| 682265 |  |
Bolt 4 68226221 Bolt | 21 | 6 | Add to Cart |
| 684320 |  |
Ball Valve | 22 | 1 | Add to Cart |
| 771056 |  |
Gasket | 24 | 1 | Add to Cart |
| 804697 |  |
Silencer | 25 | 1 | Add to Cart |
| 611148 |  |
Bolt | 26 | 4 | Add to Cart |
| 682276 |  |
Nut with Flange | 27 | 4 | Add to Cart |
| 709156 |  |
Pump Base | 28 | 2 | Add to Cart |
| 770551 |  |
Cushion | 29 | 4 | Add to Cart |
