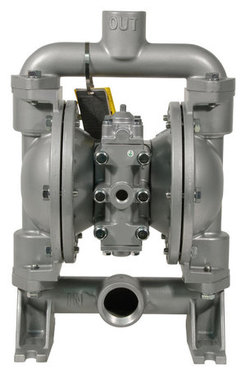

MODEL: NDP-32BAN
Yamada remedies re-piping issues with the Yamada® NDP-32BAN series pump. Designed to facilitate pump replacement for existing non-Yamada pump installations, the NDP-32 utilizes a 1-1/2\" NPT inlet port with a 1-1/4\" NPT outlet port to ensure compatibility with competitor designs.
Product Details
| Inlet (in) | 1.5 |
| Outlet (in) | 1.25 |
| Max Flow (gpm) | 50.2 |
| Max Temp | 180 |
| Max Solid (in) | 3/32 |
| Valve Type | 3/8 |
| Air Motor Material | Aluminum |
| Body Material | Aluminum |
| Elastomer Material | Buna N |
Documentation
| Performance Curve | NULL |
| BOM | NDP-32BAN_Bill_of_Material.pdf |
| CAD Drawings (PDF) | NULL |
| CAD Drawings (DWG) | NULL |
